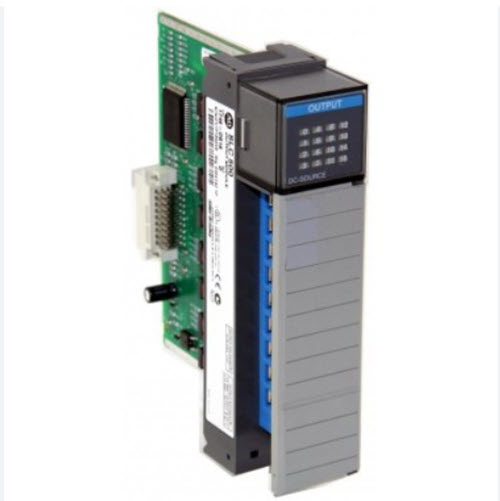

1746-OB16 Allen Bradley

1746-OB16 Allen Bradley

Discrete output module that is compatible with for use with the SLC500 product family. This module features Sixteen (16) 24VDC output channels that is used to energize electrical devices for implementing manual and automatic control of the process or machines.

Features:

• Is a single slot module that fits to any slot of an SLC500 chassis except the leftmost module which is reserved for the processor or communication module.
• Backplane current draw of 0.250 A at 5VDC and 0 A at 24VDC.
• Has an OFF state leakage current of 1 mA and load current of 1 mA.
• Each channel has a continuous Current of ) 1.5 A @ 30 °C (86 °F) 1.0 A @ 60 °C (140 °F) and continuous Current per module of 6.4 A @ 0…60 °C (32…140 °F).
• Sixteen (16) channels.
• Each channel has an ON signal delay of 0.1 ms
• OFF signal delay of 1.0 ms with ON-state voltage drop of 1.0V at 1.0 A with surge current per point of 4.0 A at 10 ms and surge current per module of 32.0 A at 10 ms.

Specifications:

• Manufacturer Rockwell Automation
• Brand Allen-Bradley
• Continuous current per module, max 6.4 A @ 0…60 °C (32…140 °F)
• Continuous current per point 1.5 A @ 30 °C (86 °F) 1.0 A @ 55 °C (131 °F)
• Backplane Current at 5.1 Volts 0.135 A
• OFF state leakage current 1 mA
• Output Delay Time, ON to OFF 0.1 ms
• Output Delay Time, OFF to ON 1.0 ms
• Operating Voltage Range 10-30VDC
• Output Voltage 24VDC output
• No. of Outputs Sixteen (16) outputs
• Part Number/Catalog No. 1746-OB16
• Series SLC500
• Module Type Digital DC Output Module
• Voltage Range 10-50 Volts DC Source
• Outputs 16
• Current/Output 0.5 or 0.25 amps
• Current/Module 8 or 4 amps
• Backplane Current (5 Volts) 280 milliamps
• Current/Module (30 Celsius) 9 amps
• Applications High Current
• Step Response 60 milliseconds in, 2.5 milliseconds out
• Heat Dissipation 7.6 Watts
• UPC 10662468067055
• UNSPSC 32151705
