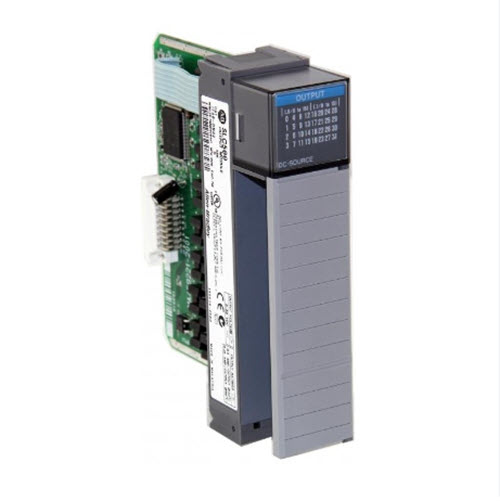

1746-OB32E Allen Bradley
Digital I/O Module comes with Thirty-Two (32) outputs. The 1746-OB32E has a voltage category of 24V DC and the operating voltage range is 10-30V DC.
Features:
- Continuous current of this module is 4A
- Backplane current consumption at 5V DC for this module is 190 mA.
- Backplane current consumption at 24V DC is 0 mA.
- Provides electronic protection from overload conditions and short circuits.
- Equipped with color-coded removable terminal blocks.
- Operating temperature is -13-140 deg. Fahrenheit
- Nonoperating temperature of this module is from -40-185 deg. Fahrenheit.
- Relative humidity is 5-95% non condensing.
- Operating vibration is 2g at 10-500 Hz
- The operating shock of this module is 30g,
- Operating vibration is 2.5g at 57-2000 Hz.
- The terminal on this module has a self-lifting lift plate that receives two 14 AWG (2 mm2) cables.
Specifications:
- Manufacturer Rockwell Automation
- Brand Allen-Bradley
- Part Number/Catalog No. 1746-OB32
- Series SLC 500
- Module Type Digital DC Output Module
- Outputs 32
- Voltage Range 10-30 Volts DC
- Current/Outputs 0.5 or 0.25 amps
- No. of Outputs Thirty-Two (32)
- Current/Module 8 amps
- Point Per common Sixteen (16)
- Nominal output 24VDC
- Backplane Current (5 Volts) 190 milliamps
- Current per Output 0.5-0.25 amps
- Applications High Current
- Applications High Current
- Backplane Current (5 Volts)190 mA
- Step Response 60 milliseconds in, 2.5 milliseconds out
- Signal Delay, ON 0.1 ms
- Signal Delay, OFF 1.0 ms
- Electronic Protection Yes
