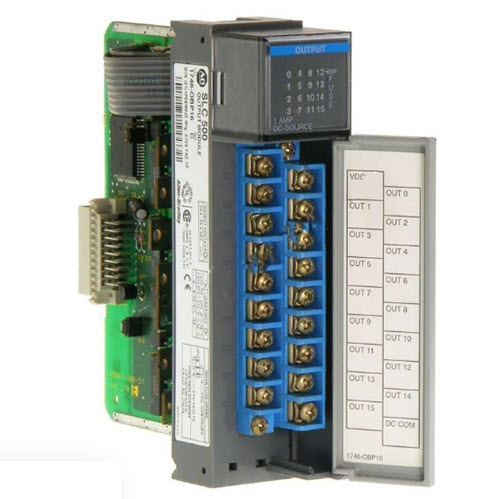

1746-OBP16 Allen Bradley
is a Sixteen (16) channel Discrete Output module from the SLC 500 product family. It provides 24VDC output with integrated fuse for short-circuit protection. This module occupies single slot of an SLC 500 chassis. It is compatible with fixed or modular style hardware.
Detalles
1746-OBP16 Allen Bradley
is a Sixteen (16) channel Discrete Output module from the SLC 500 product family. It provides 24VDC output with integrated fuse for short-circuit protection. This module occupies single slot of an SLC 500 chassis. It is compatible with fixed or modular style hardware.
Features:
- Integrated fuse that protects the module from channel short-circuit and overload current.
- The E-FEUSE LED that is provided in the front panel of the module will illuminate to indicate presence of such condition.
- Other channels will continue to operate as the electronic protection are individual for each channel.
- It is considered a channel shutdown when the error has been detected.
- To allow the channel to recover from the fault condition, the SLC 500 system power must be removed and the actual error must be corrected.
- Once the actual source of error has been corrected, the system power may be applied, and the module automatically reset and resumes providing control output.
Specifications:
- Manufacturer Rockwell Automation
- Brand Allen-Bradley
- Part Number/Catalog No. 1746-OBP16
- Series SLC 500
- Module Type Digital DC Output Module
- Outputs 16
- Voltage Range 20.4-26.4 Volts DC Source
- No. of Outputs Sixteen (16)
- Current/Output 1.5 or 1 amps
- Current/Module 6.4 amps
- Backplane Current (5 Volts) 250 milliamps
- Applications High Current
- Fuse Protection Yes
- Applications High Current
- Compatible Fuse Littelfuse #322010,10A or #332010,10A
- Step Response 60 milliseconds in, 2.5 milliseconds out
- Fuse kit part number 1746-F8
- UPC 10662468166017
- Recommended signal wires Max 2 mm. sq. (14 AWG)
