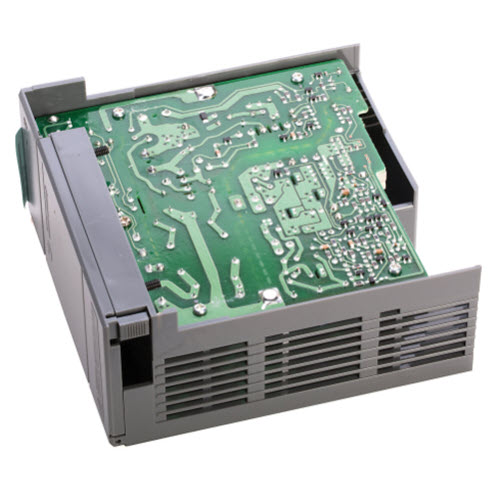

1746-P1 Allen Bradley

1746-P1 Allen Bradley

Is an SLC 500 power supply. It has a line voltage of 85 to 132 Volts or 170 to 265 Volts AC at 47 to 63 Hertz and with a typical line power requirement of 135 VA.

Features:

• Its internal current capacity is 2 A at 5 Volts DC and 0.46 A at 24 Volts DC and its inrush current is a maximum of 20 A.
• 24 Volt DC user-power current capacity of 200 mA and a 24 Volt DC user-power voltage range of 18 to 30 Volts DC.
• Maximum user-supplied overcurrent protection is 15 A
• Backplane is 1800 Volts AC RMS for 1 second.
• Measuring 5.5 x 2.3 x 5.7 inches
• Weighing 2 pounds or 0.9 kilograms
• Can be installed in a 1746 chassis.
• Operating temperature of 0 to 60 degrees Celsius and the current capacity is derated by 5% when the temperature exceeds 55 degrees Celsius.

Specifications:

• Manufacturer Rockwell Automation
• Brand Allen-Bradley
• Part Number/Catalog No. 1746-P1
• Series SLC 500
• Module Type Power Supply
• Input Voltage 120 to 220 Volts AC
• Input Power 42 Watts
• Inrush Current 20 Amps
• Internal Current Capacity 2 A at 5V dc 0.46 A at 24V dc
• Output Voltage Range 18 to 30 Volts DC
• Backplane Current (5 Volts) 2 Amps
• Backplane Current (24 Volts) 0.46 Amps
• Frequency 47 to 63 Hertz
• Location 1746 Chassis
• Weight 2 pounds (0.9 kilograms)
• UPC 10662073521416
• Dimensions 5.5 x 2.3 x 5.7 inches
• Operating Temperature 0 to 60 Celsius
• UNSPSC 32151706
• Fuse Protection 1746-F1 or equivalent
