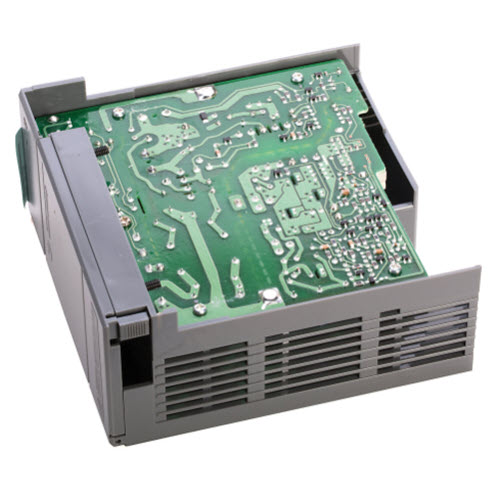

1746-P2 Allen Bradley Power Supply
$0.00
1746-P2 Allen Bradley Power Supply
Is part of the SLC 500 series. It is CE certified and its operating voltage range is 18 to 32 Volts DC.
Detalles
1746-P2 Allen Bradley Power Supply
Features
- The Allen-Bradley 1746-P2 is a power supply of the SLC 500 series with an input voltage of 120/220V AC.
- Is designed to be inserted into an SLC 1746 modular chassis which has varying sizes of 4, 7, 10 or 13 slots.
- Output Voltage Range 18 to 30 Volts DC
- CPU Hold up time20 ms (full load) 3000 ms (no load)
Specifications:
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1746-P2 |
| Series | SLC 500 |
| Module Type | Power Supply |
| Input Power | 70 Watts |
| Input Voltage | 120 to 220 Volts AC |
| Typical line power requirement | 180VA |
| Inrush Current | 20 Amps |
| Backplane Current (5 Volts) | 5 amps |
| Internal Current Capacity | 5 A at 5V dc; 0.96 A at 24V dc |
| Backplane Current (24 Volts) | 0.46 Amps |
| Frequency | 47 to 63 Hertz |
| Location | 1746 Chassis |
| Weight | 1.1 kg or 2.5 lbs. |
| UPC | 10662468088326 |
| Dimensions | 5.5 x 3.3 x 5.7 inches |
| UNSPSC | 32151706 |
| Operating Temperature | 0 to 60 Celsius |
| Fuse Protection | 1746-F1 or equivalent |
