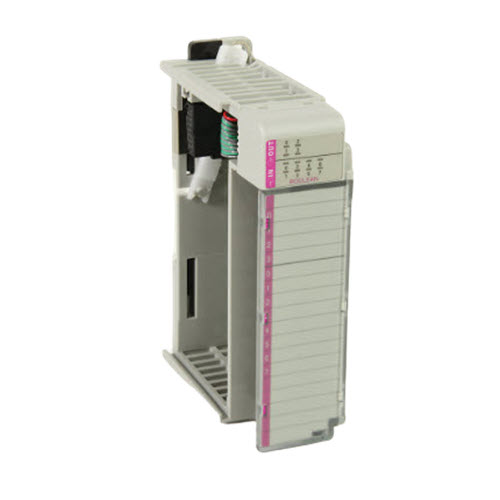

1769-BOOLEAN Allen Bradley

1769-BOOLEAN Allen Bradley

Is a specialty module that is manufactured by Allen-Bradley as part of the CompactLogix series. It is a specialty I/O module that features both sink inputs and source outputs.

Features:

• The voltage rating of the 1769-BOOLEAN specialty I/O module is 24 Volts DC.
• This module supports an I/O memory mapping method that allows the users to configure it to meet their application demands.
• The terminal block and the door that grants access to the internal parts of the 1769-BOOLEAN specialty I/O module can be replaced when necessary by spare parts from the CompactLogix accessories catalog.

Specifications:

• Manufacturer Rockwell Automation
• Brand Allen-Bradley
• Part Number/Catalog No. 1769-BOOLEAN
• Product Line CompactLogix
• Module Type Boolean Control Module
• Shipping Weight 2 lbs.
• Shipping Dimensions 8X8X5 in.
• Series A and B
• Isolation Voltage 30 Volts
• Isolation Voltage 30 Volts Continuous
• Enclosure Open
• Backplane Current 1.4 Amps at 24 Volts
• Power Consumption 33.6 Watts
• Power Dissipation 7.5 Watts
• UPC 10781180908627
