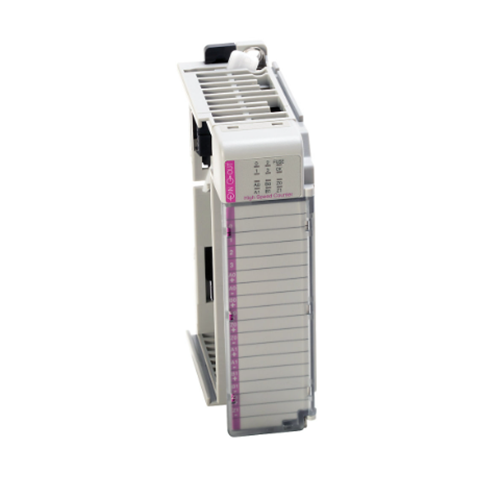

1769-HSC Allen Bradley

1769-HSC Allen Bradley

Is a Compact I/O module that is used to interface signaling devices with high-frequency switching. this module is typically used for counter applications, totalizer requirements and position monitoring and control.

Features:

• This module is part of the 1769 Compact I/O modules
• Compatible for use in both the CompactLogix and MicroLogix Programmable Automation Controllers (PAC) and Programmable Logic Controllers (PLC) respectively.
• It can be used to directly interface with encoders, pulse output of Transmitters and direct connection with fast sensing devices.

Specifications:

• Wire size: 0.32… 2.1 mm2 (22…14 AWG) solid copper wire or 0.32…1.3 mm2 (22…16 AWG) stranded copper wire rated at 90 °C (194 °F ) insulation max
• Bus Current Draw @ 5.14Vdc: 425 mA
• Dimension: 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height including mounting tabs is 138 mm (5.43 in.)
• On-State Current: 1 A per point; 4 A per module
• No. of Outputs: 16 total, 4 physical and 12 virtual
• No. of Inputs: 2 quadrature (ABZ) differential inputs
• Product Type: Counter Module
• Bus Current Draw @ 24Vdc: 0 mA
• Power Supply Distance Rating: Module cannot be more than four modules away from a system power supply
• Isolation Voltage: 75V (continuous), reinforced insulation type, channel-to- system and channel-to-channel Type tested at
• 1200V AC for 2 s
• Recommended Cable: Individually shielded, twisted-pair cable (or the type recommended by the encoder or sensor
• manufacturer
• Manufacturer Rockwell Automation
• Brand Allen-Bradley
• Part Number/Catalog No. 1769-HSC
• Shipping Weight 130 g (0.286 lb)
• Operating Temperature 0-60 Degree Celsius
• Product Line CompactLogix
• Module Type High Speed Counter Module
• Shipping Dimensions 8 x 8 x 5 inches
• Series A and B
• Enclosure Type Open
• Maximum Bus Current Draw 5 mA at 5 Volts DC
• Backplane Current 1.4 Amps at 24 Volts
• Power Consumption 33.6 Watts
• Power Dissipation 7.5 Watts
• UPC 10612598286208
