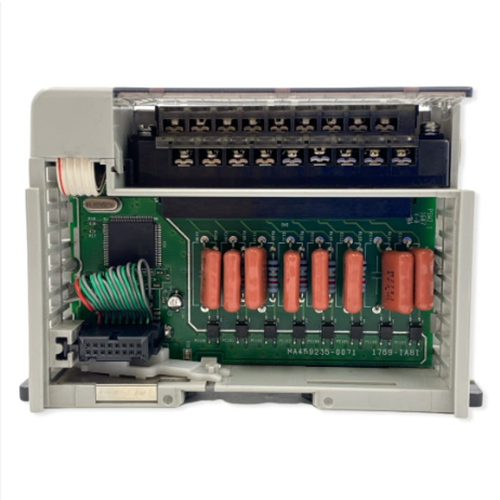

1769-IA8I Allen Bradley

1769-IA8I Allen Bradley

Is a 1769 Compact I/O module. This module is an AC input module that is designed with individually isolated input channels. It is capable of receiving 79-132VAC voltage signal range with frequency of 47-63 Hz.

Features:

• The 1769-IA8I input channels has input response time of 20 ms for OFF to ON and OFF to ON signal transitions.
• It draws 5.1 mA current from the backplane and dissipated heat amounting to 1.81 Watts.
• Minimum ON-state signal voltage is 79 VAC
• Maximum ON-state signal voltage is 132VAC.
• Minimum ON-state current is 5 mA at 74VAC
• Maximum ON-state current of 12mA at 120VAC.
• Maximum OFF-state signal voltage is 20VAC
• Maximum OFF-state current is 2.5 mA.

Specifications:

• Series 1769 Compact I/O
• Backplane Current at 5.1 Volts 90 mA
• Input Delay Time, OFF to ON 20 ms
• Supported mounting DIN rail / Panel Mount
• Module Width Single slot
• Input Frequency 47-63 Hz
• Operating Voltage Range 79-132VAC
• Input Voltage 100/120 VAC
• No. of Input Eight (8) isolated input channels
• Manufacturer Rockwell Automation
• Brand Allen-Bradley
• Part Number/Catalog No. 1769-IA8I
• Module Type Individually isolated discrete input module
• Product Line CompactLogix
• Input Type Analog Input
• Communication Cable 8 Point
• Shipping Weight 2 lbs.
• Shipping Dimensions 8X8X5 in.
• Enclosure Type Open
• Backplane Current 1.4 Amps at 24 Volts
• Power Consumption 33.6 Watts
• Power Dissipation 7.5 Watts
• UPC 10662468992838
