1769-IF16C Allen Bradley

1769-IF16C Allen Bradley

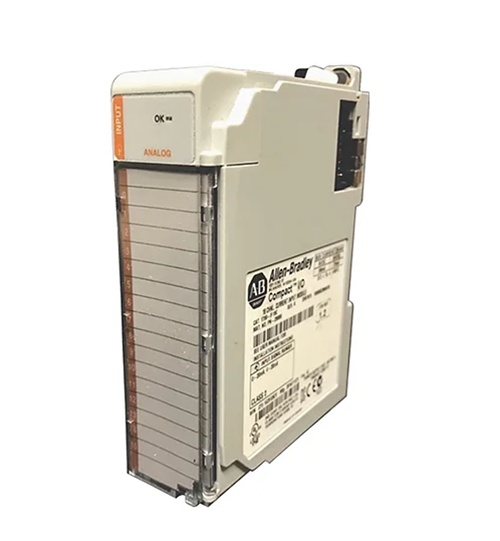

Is a Compact I/O module that is compatible for use with MicroLogix 1500 Programmable Logic Controller (PLC) and CompactLogix Programmable Automation Controllers (PAC).

Features:

• 16 single-ended input channels that are designed to interface field instruments that provides 0-20 mA or 4-20 mA analog Current signal towards the module’s input channels.
• Used for interfacing of field instruments such as Transmitters, controllers; Accept feedback signals of Variable Frequency Drives (VFD), modulating valves, panel meters, data loggers and similar devices.
• Used to received conditioned output signals of signal isolators or splitters.

Specifications:

• Product Type: Analog Input Module
• Current signal full range: 0-21 mA; 3.2 – 21 mA
• Current signal normal ranges: 0-20mA; 4-20 mA
• Input current range: 0-21 mA
• Power Supply Distance rating: 8
• Compatible Controllers: MicroLogix 1500; CompactLogix
• Resolution: 16 bits (unipolar) 15 bits plus sign (bipolar)
• Channel Diagnostics: Over- or under-range by bit reporting, process alarms
• Slot width: 1
• Recommended cable: Belden™ 8761 (shielded)
• No. of Inputs: 16 Single Ended Inputs
• Manufacturer Rockwell Automation / Allen-Bradley
• Dimension: 118 mm (height) x 87 mm (depth) x 35 mm (width) [52.5 mm (width) for 1769-IF8] Height
• including mounting tabs is 138 mm 4.65 in (height) x 3.43 in (depth) x 1.38 in (width) [2.07 in (width) for 1769
• IF8] Height including mounting tabs is 5.43 in
• Brand Allen-Bradley
• Part Number/Catalog No. 1769-IF16C
• Product Line CompactLogix
• Module Type 16 Point Analog Current Input Module
• Input Type Analog Input
• Communication Cable 16 Point
• Shipping Weight 2 pounds
• Shipping Dimensions 8 x 8 x 5 inches
• Series A and B
• Enclosure Type Open
• Backplane Current 1.4 Amps at 24 Volts
• Power Consumption 33.6 Watts
• Power Dissipation 7.5 Watts
• Isolation Voltage 30 Volts DC
• UPC 10612598626783
