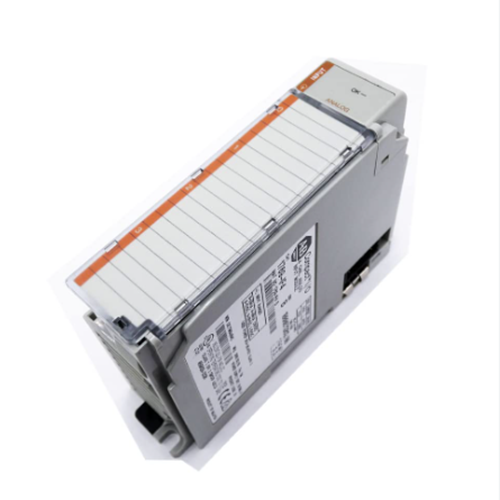

1769-IF4 Allen Bradley

1769-IF4 Allen Bradley

Is an analog input module that is used with Allen Bradley’s MicroLogix 1500 and 1769 CompactLogix family of controllers.

Features:

• 4 input channels of this module are individually configured to receive current and voltage signals at ranges of 0-21 mA; 3.2 – 21 mA for Current and ±10.5V DC, -0.5…10.5V DC, -0.5…5.25V DC, 0.5…5.25V DC for Voltage.
• Nominal current signals are 0-20 mA and 4-20mA and voltage signals available are +/10VDC, 1-5VDC, 0-5VDC, 0-10VDC.
• Integrated with an Analog to Digital (ADC) circuit with conversion type of Delta-Sigma.
• The module’s conversion resolution are 14 bits or unipolar and 14 bits plus sign or bipolar.

Specifications:

• Manufacturer Rockwell Automation
• Brand Allen-Bradley
• Part Number/Catalog No. 1769-IF4
• Product Line CompactLogix
• Module Type 4 Channel Analog Input Module
• Product Type Analog Input Module
• Input Type Analog Input
• Compatible Controllers: MicroLogix 1500; 1769 CompactLogix
• No. of Inputs: 4 Differential and Single Ended Inputs
• Communication Cable 4 Point
• Shipping Weight 2 lbs.
• Power Supply Distance rating: 8
• Shipping Dimensions 8X8X5 in.
• Input current range: 0-21 mA
• Current signal normal ranges: 0-20mA; 4-20 mA
• series A and B
• Converter Type Delta Sigma
• Current signal full range: 0-21 mA; 3.2 – 21 mA.
• Backplane Current 1.4 Amps at 24 Volts
• Input voltage range: 0-10.5VDC
• Power Consumption 33.6 Watts
• Voltage signal normal ranges: ±10V DC, 0 …10V DC, 0…5V DC, 1…5V DC
• External Power Switch 24 VDC
• Voltage signal full range: ±10.5V DC, -0.5…10.5V DC, -0.5…5.25V DC, 0.5…5.25V DC
• Power Dissipation 7.5 Watts
• Resolution: 14 bits (unipolar) 14 bits plus sign (bipolar)
• UPC 10662468992937
• Rated working voltage: 30VAC; 30VDC
