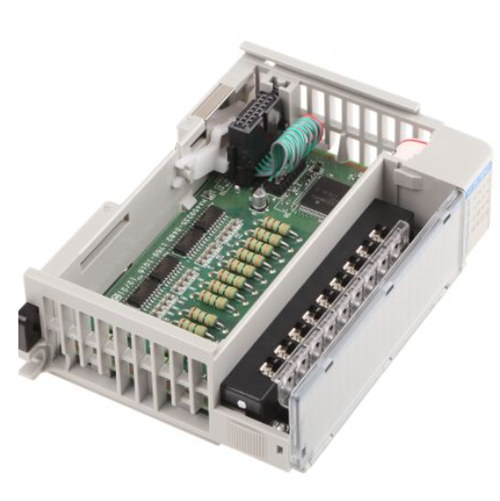

1769-IQ16 Allen Bradley

1769-IQ16 Allen Bradley

Is a DC digital input module with Sixteen (16) 24 Volts DC sinking and sourcing inputs. This module has Two (2) input groups with Eight (8) channels per group. It has an optimum voltage range of 10 to 30 Volts DC at 30 degrees Celsius (86 degrees Fahrenheit) and 10 to 26.4 Volts DC at 60 degrees Celsius (140 degrees Fahrenheit).

Features:

• It has 8 milliseconds input OFF/ON signal delay time and draws a 115mA current at 5.1 Volts DC.
• Maximum OFF state voltage and current rating of 5 Volts DC and 1.5mA respectively.
• ON rating of 10 Volts DC and 2mA.
• Maximum surge current of 250mA and a nominal input impedance of 3 kW.
• IEC Class 2 reinforced insulation type with an isolation voltage of 75 Volts DC tested at 1697 Volts DC for 1 second between inputs-to-BUS and group-to-group.

Specifications:

• Manufacturer Rockwell Automation / Allen-Bradley
• Brand Allen-Bradley
• Part Number/Catalog No. 1769-IQ16
• Product Family: Compact I/O
• Product Type: Discrete Input Module
• Product Line CompactLogix
• Module Type DC Input Module
• No. of Inputs: 16
• Input Type Digital Input
• No. of Groups: 2 groups (8 inputs each)
• Power Supply Distance rating: 8
• Communication Cable 16 Point
• Shipping Weight 2 lbs.
• Compatible Controllers: MicroLogix 1500; CompactLogix
• Voltage Category: 24V DC sink/source
• Shipping Dimensions 8 x 8 x 5 in.
• Series A and B
• Operating Voltage range: 10…30V DC @ 30 °C (86 °F) 10…26.4V DC @ 60 °C (140 °F)
• Off-state Voltage: 5V DC
• Distance Rating 8 Modules
• On-state Voltage: 10V DC
• Working Voltage Rating 30 Volts AC/ 30 Volts DC
• Input delay, On: 8 ms
• Wire Type Copper-90 degrees Celsius
• Power Supply: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
• Replacement Terminal Block 1769-RTBN18
• Wire Size (Solid) 22-14 AWG
• UPC 662468992817
• Wire Size 22-14 AWG (Solid); 22-16 AWG (stranded)
• UPC 10662468992814
