1769-IQ32 Allen Bradley

1769-IQ32 Allen Bradley

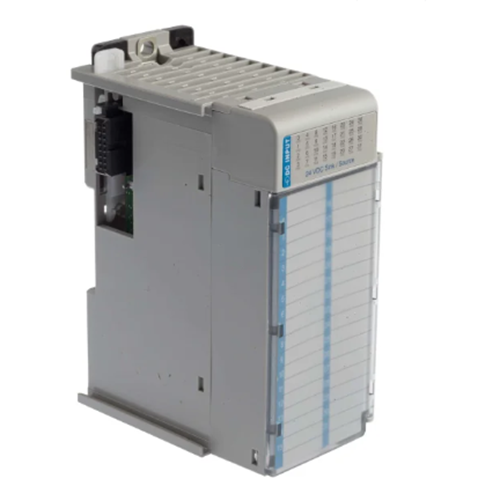

Is part of the Compact I/O module family that is compatible for use with MicroLogix 1500 and CompactLogix controllers. This module especially features high density input channels as it has Thirty-Two (32) 24VDC input channels supporting both sinking and sourcing wiring configuration.

Features:

• This module has a power supply distance rating of Eight (8) modules.
• As some CompactLogix controllers support installation of more than Eight (8) Compact I/O modules, applicable power supply unit must be installed to meet the power supply requirement of the 1769-HSC and other Compact I/O modules.
• The 1769-HSC follows the installation method of the existing CompactLogix rack.
• When installed in a CompactLogix I/O expansion bank, the same power supply distance rating must be observe.

Specifications:

• Product Family: Compact I/O
• Off-state Voltage: 5V DC
• Operating Voltage range: 10…30V DC @ 30 °C (86 °F) 10…26.4V DC @ 60 °C (140 °F)
• Voltage Category: 24V DC sink/source
• Supported Adapter: 1769-ADN DeviceNet adapter; 1769-AENTR Ethernet adapter
• Compatible Controllers: MicroLogix 1500; CompactLogix
• Power Supply Distance rating: 8
• No. of Groups: 4 groups (8 inputs each)
• No. of Inputs: 32
• On-state Voltage: 10V DC
• Input delay, On: 8 ms
• Operating Temperature: 0°C to +60°C (32°F to +140°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Product Type: Discrete Input Module
• Manufacturer Rockwell Automation / Allen-Bradley
• Operating Humidity: 5% to 95% non-condensing
• Brand Allen-Bradley
• Part Number/Catalog No. 1769-IQ32
• Product Line CompactLogix
• Module Type DC Input Module
• Input Type Digital Input
• Communication Cable 32 Point
• Shipping Weight 2 lbs
• Shipping Dimensions 8 x 8 x 5 in
• Series A and B
• Weight 0.97 lb or 440 g
• Voltage Rating 24 Volts DC Sink/Source
• Replacement Terminal Block 1769-RTBN18
• Wire Type Copper-90 degrees Celsius
• Wire Size (Solid) 22-14 AWG
• UPC 10611320915652
