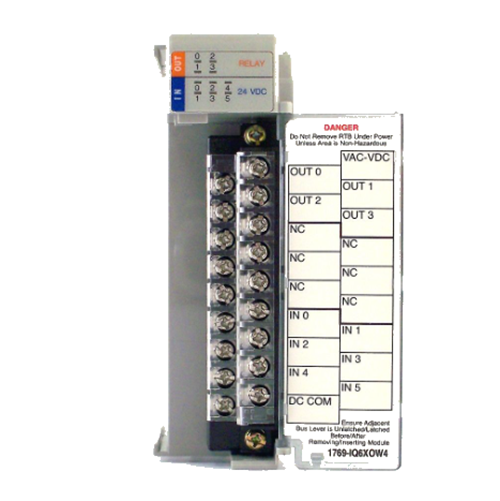

1769-IQ6XOW4 Allen Bradley

1769-IQ6XOW4 Allen Bradley

Compact Digital DC I/O Module is a combination sink/source input and AC/DC relay output module. Can be installed on a DIN rail or a panel using mounting screws and designed to fit perfectly with other modules to build an assembly or system.

Features:

• The 1769-IQ6XOW4’s tongue-and-groove design locks it together with other modules.
• It also features an integrated communication bus that connects one module to another via the movable bus connector.
• The 10-Channel Compact I/O Module comes with six 24V DC sink/source inputs and four AC/DC normally open relay contact outputs.
• Operating voltage range of 10-30V DC at 30 °C (86 °F) and 10-26.4V DC at 60 °C (140 °F).
• It has a maximum inrush current of 250 mA with type 3 IEC input compatibility.
• Its maximum current per point is 2.5 A while per module the maximum is 8 A.

Specifications:

• Manufacturer Rockwell Automation
• Brand Allen-Bradley
• Part Number/Catalog No. 1769-IQ6XOW4
• Product Line CompactLogix
• Module Type Digital Combo Module
• Input Type Digital Input
• Communication Cable 6 Point
• Shipping Weight 2 lbs.
• Shipping Dimensions 8X8X5 in.
• Series A and B
• Weight 0.97 lb or 440 g
• Voltage Rating 24 Volts DC Sink/Source
• Replacement Terminal Block 1769-RTBN18
• Wire Type Copper-90 degrees Celsius
• Wire Size (Solid) 22-14 AWG
• UPC 10662468992920
