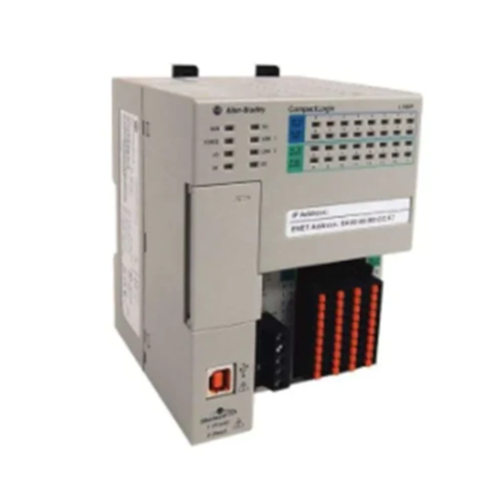

1769-L18ERM-BB1B Allen Bradley

1769-L18ERM-BB1B Allen Bradley

Is a CompactLogix Controller that is part of the 5370 L1 Series. This controller is a DIN rail, compact and scalable Programmable Automation Controller (PAC) as it comes with embedded I/O channels and supports installation of expansion I/Os.

Features:

• It is provided with Sixteen (16) 24VDC Discrete input channels and Sixteen (16) 24VDC Discrete Output Channels and supports installation of up to Eight (8) Point I/O modules from the 1734 product family.
• Comes with 512KB user memory and 1GB non-volatile memory.
• Only the non-volatile memory is replaceable as it is a removable 1784-SD1 Secure Digital (SD) card. Appropriate replacement is 1784-SD2.
• Two (2) Ethernet ports and One (1) USB ports.
• Ethernet ports support 10/100 Mbps communication speed while the USB port supports up to 12mbops transmission rate.
• The Ethernet ports supports Linear, Traditional Star and Device Level Ring (DLR) topologies.

Specifications:

• Product Family: 5370 L1
• Motion Axes 1 or 2
• Integrated Motion Supported
• Current draw @ 5V DC: 1A
• Mounting: DIN Rail
• Programming Language: Relay ladder (Safety Task only) • Structured Text • Function block • SFC
• No. of Embedded Inputs: (16) 24 VDC
• No. of Program per Task: 100
• No. of Task: 32 Task
• Maximum number of I/O modules supported: 8 Modules – Point I/O
• Ethernet nodes: 8 Nodes
• Ethernet topologies: Linear, Star and Device level Ring (DLR)
• Communication ports: (1) USB; (2) Ethernet I/P
• Product Type: CompactLogix Controller
• Manufacturer Rockwell Automation / Allen-Bradley
• Brand Allen-Bradley
• Part Number/Catalog No. 1769-L18ERM-BB1B
• Product Line CompactLogix
• Module Type Processor Module
• Communication Ethernet
• Input Power 24 Volts DC
• Memory 512 KB
• Communication Cable 8-Point
• Shipping Weight 3 pounds
• Shipping Dimensions 11 x 8 x 6 inches
• Series A and B
• Replacement Terminal Block Part Number 1769-RTBN18
• Wire Type Copper-90 degrees Celsius
• Wire Size (Solid) 22 to 14 AWG
• UPC 10612598968661
