1769-L24ER-QB1B Allen Bradley

1769-L24ER-QB1B Allen Bradley

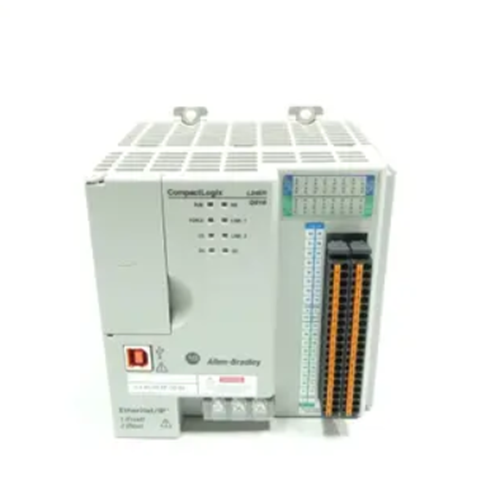

Is a Programmable Logic Controller (PLC) that belongs to the 1769 CompactLogix product family. This controller is a packaged controller, having integrated components such as variety of communication ports, integrated memory, power supply and Input and Output channels.

Features:

• Thirty-Two (32) I/O channels
• Two (2) Ethernet communication ports.
• I/O channels consists of up of Sixteen (16) DC input
• Sixteen (16) DC output channels.
• For the input channels, it operates with nominal voltage of 24 Volt DC with operating range of 10 to 28.8 VDC.
• Current draws are 1.54 A at 5 Volts DC and 0.95 A at 24 Volts DC.
• Off-state Maximum current of 1.5 mA and a maximum voltage of 5 Volts DC.
• On-state currents are 2 mA at 24 Volts DC per channel and 5 mA at 24 Volts DC per channel, which are the minimum and maximum respectively.

Specifications:

• Manufacturer Rockwell Automation / Allen-Bradley
• Brand Allen-Bradley
• Part Number/Catalog No. 1769-L24ER-QB1B
• Product Type: Programmable Automation Controller
• Product Line CompactLogix
• Module Type Processor Module
• Communication ports: (1) USB; (2) Ethernet I/P; 1 RS232
• Communication Ethernet
• Supported Protocols: ASCII; DH485; DF1; Ethernet
• No. Of Axes over Ethernet: 2 axes
• No. of Task: 32 Task
• Shipping Weight 3 lbs.
• No. of Program per Task: 100
• Shipping Dimensions 11X8X6 in.
• No. of Embedded Inputs: (16) 24 VDC
• Series A and B
• Replacement Terminal Block Part Number 1769-RTBN18
• Wire Type Copper-90 degrees Celsius
• Programming Language: Relay ladder (Safety Task only) , Structured Text, Function block, SF
• Wire Size (Solid) 22-14 AWG
• Memory 750KbytesWire Size (Stranded) 22-16 AWG
• UPC 10885630101221
• Non-Volatile Memory: 1784-SD1 card with 1 Gb of available memory (shipped with controller) 1784-SD2 card with 2 Gb of available memory (available for separate ordering)
• Mounting DIN Rail
