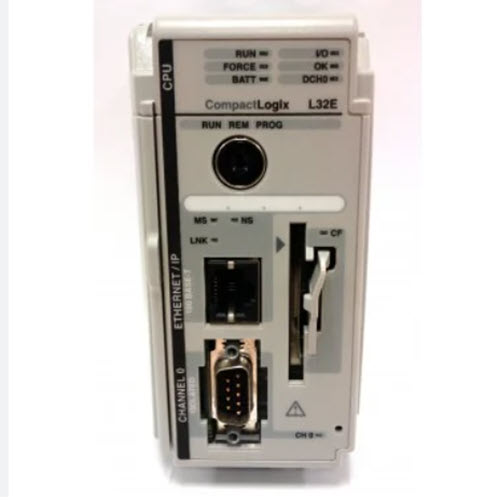

1769-L32E Allen Bradley Automation Controller

1769-L32E Allen Bradley Automation Controller

Is a Programmable Automation Controller (PAC). This controller is typically used in machine control and medium sized process applications. The controller has an integrated One (1) RS232 and One (1) Ethernet communications port.

Features:

• The default configuration of the RS232 interface are DF1 full-duplex, 19.2 Kbps, no parity, Station Address 0, No Handshaking, BCC error detection, Auto Detect embedded responses, 8 Data bits and 1 Stop bits.
• Default configuration may be manually configured to establish initial communication to the device.
• If used with RSLinx, auto-configure maybe used to automatically detect the communication settings.
• This same RS232 port may also be configured as ASCII protocol interface to connect to barcode instruments.

Specifications:

• Manufacturer Rockwell Automation / Allen-Bradley
• Brand Allen-Bradley
• Part Number/Catalog No. 1769-L32E
• Product Line CompactLogix
• Product Type: Programmable Automation Controller
• Module Type Processor Module
• Communication ports: 1 RS232; 1 Ethernet
• Communication Ethernet/IP
• Supported Protocols: DH485; DF1; ASCII; EtherNet
• Memory 750 KB
• Maximum number of I/O modules supported: 16 Modules
• Shipping Weight 2 pounds
• Maximum number of I/O banks supported: 3 banks
• Shipping Dimensions 8 x 8 x 5 inches
• Power supply distance rating: 4
• Series A and B
• Battery 1747-BA
• Programming cable: 1747-CP3 / 1756-CP3
• Wire Type Copper-90 degrees Celsius
• Wire Size (Solid) 22 to 14 AWG
• Vibration: Operating: 10 to 500 Hz, 5G, 0.030 in. peak-to-peak
• Modules Supported 16 I/O Modules
• Operating Temperature: 0° to +60°C (+32° to +140°F)
• Wire Size (Stranded) 22 to 16 AWG
• Programming Language: Relay ladder, Structured Text, Function block, SF
• UPC 10612598313935
• Mounting: DIN Rail; Panel Mounting
• UNSPSC 32151705
• Certifications: c-UL-us; CE; C-Tick; CI
