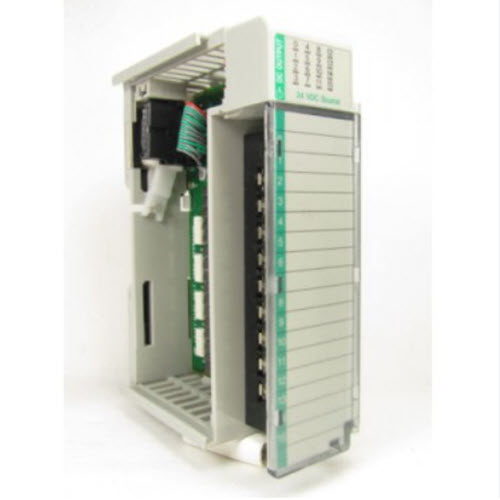

1769-OB16P Allen Bradley

1769-OB16P Allen Bradley

Is a solid-state output module that is part of the 1769 Compact I/O product family. This module is compatible for use with Allen-Bradley’s CompactLogix and MicroLogix controllers. With CompactLogix, it may be installed as a local I/O module as well as an expansion I/O module. With MicroLogix, it may server as a local I/O expansion module.

Features:

• Delivers an output voltage range of 20.4-26.4VDC in sourcing configuration.
• Each output channel exhibits signal transition of delay of 1.0 ms for ON transition and 2.0 ms for OFF transition.
• Current draw of 160 mA and provides output current of 0.5 A @ 60 °C (140 °F) or 1.0 A @ 30 °C (86 °F) per channel and 4.0 A @ 60 °C (140 °F) or 8.0 A @ 30 °C (86 °F) per module.
• Surge current rating of 2.0 A for 10 ms that is repeatable every 1 s.

Specifications:

• Manufacturer Rockwell Automation
• Continuous current per module, max 4.0 A @ 30 °C (30 °C) 8.0 A @ 55 °C (60 °C)
• Continuous current per point 0.50 A @ 30 °C (30 °C) 1.0 A @ 55 °C (60 °C)
• Backplane Current at 5.1 Volts 160 mA
• OFF state leakage current 1.0 mA @ 26.4V DC
• Output Delay Time, ON to OFF 2 ms
• Output Delay Time, OFF to ON 1 ms
• Operating Voltage Range 20.4-26.4VDC
• Output Voltage 24VDC
• No. of groups One (1) output groups
• Electronic Protection Integrated
• No. of Outputs Sixteen (16) outputs
• Brand Allen-Bradley
• Module Type Solid-state DC Output Module
• Part Number/Catalog No. 1769-OB16P
• Series 1769 Compact I/O
• Series 1769 Compact I/O
• Product Line CompactLogix
• Input Type Digital Output
• Communication Cable 16-Point
• Shipping Weight 2 pounds
• Shipping Dimensions 8 x 8 x 5 inches
• Power 24 Volts DC
• Power Supply Distance Rating 8 Modules
• Voltage Category 100 to 240 Volts AC
• Wire Size (Solid) 22 to 14 AWG
• UPC 10662468992876
• UNSPSC 32151705
