1769-OB32 Allen Bradley DC Output Module

1769-OB32 Allen Bradley DC Output Module

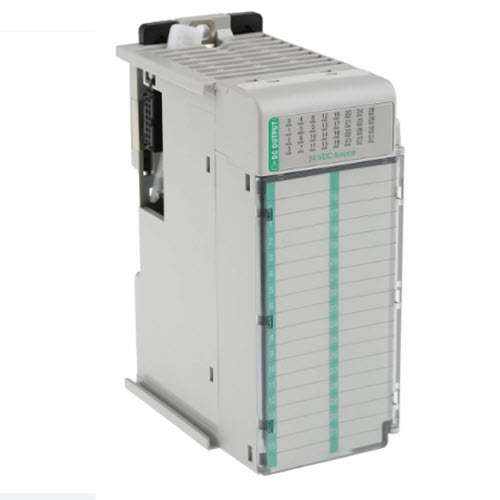

1769-OB32 belong to the 1769 Compact I/O. This solid-state device is a discrete output sourcing module that is manufactured by Allen-Bradley for use with CompactLogix Controllers as well as MicroLogix 1500 controllers.

Features:

• high-density module with Thirty-Two (32) output channels, isolated in Two (2) groups of Sixteen (16) channels.
• For use in applications where a large number of I/Os are existing, with limited panel space.
• This module occupies 1.5 slot of the CompactLogix or MicroLogix 1500 chassis to allow maximizing supported module of a specific controller.
• The output channel of this module operates at a sourcing input configuration.
• Individual ON Output delay of each channel measures 0.1 ms and an OFF output delay of 1.0 ms. Each channel may carry a Current of 0.5 A @ 60 °C (140 °F) and 1.0 A @ 30 °C (86 °F).

Specifications:

• Manufacturer Rockwell Automation / Allen-Bradley
• Brand Allen-Bradley
• Product Family: Compact I/O
• Part Number/Catalog No. 1769-OB32
• Product Type: Discrete Output Module
• Product Line CompactLogix
• Module Type DC Output Module
• Input Type Digital Output
• Compatible controllers: MicroLogix 1500; CompactLogix controllers
• No. of Outputs: 32
• Outputs 32 Point
• No. of Groups: 2
• Shipping Weight 2 pounds
• Power Supply Distance rating: 8
• Shipping Dimensions 8 x 8 x 5 inches
• Operating Voltage range: 20.4…26.4V DC
• Series A and B
• Enclosure Open
• Current per point: 0.5 A @ 60 °C (140 °F) 1.0 A @ 30 °C (86 °F)
• Wire size: (22…14 AWG) solid (22…16 AWG) stranded
• Wire Size (Solid) 22 to 14 AWG
• Wire type: Cu-90 °C (194 °F)
• Wire Size (Stranded) 22 to 16 AWG
• Replacement Terminal Block 1769-RTBN18
• Power Supply: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
• Replacement Door 1769-RD
• Replacement door label: 1769-RL1
• UPC 10611320915669
• UNSPSC 32151705
• Mounting Panel Mount or DIN Rail
• Dimensions: 118 x 52.5 x 87 mm (4.65 x 2.07 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.)
