1769-OB8 Allen Bradley DC Output Module

1769-OB8 Allen Bradley DC Output Module

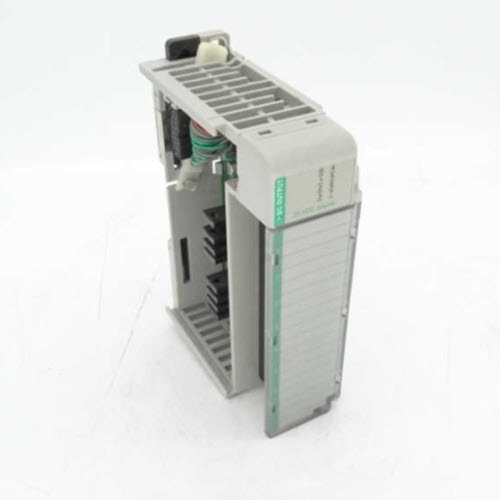

Is a compact solid-state 24V DC digital source and high-current output module. It is part of the 1769 Series of Compact I/O Modules. This family of modules can be used for expansion I/O in a MicroLogix controller, in an assembly with an EtherNet (1769-AENTR)/DeviceNet (1769-ADN) adapter, or with a CompactLogix controller.

Features:

• Features the read/writable configuration data that can be programmed to maintain the last state and user-defined conditions.
• 24V DC Digital Source I/O Module provides 8 outputs total with 4 points per group.
• Its voltage range is 20.4-26.4V DC.
• Current draw is 145 mA at 5.1V.
• Surge current of 4A for 10 ms is repeatable every 2 seconds.
• The input data file of the output module does not reflect the electrical state of the output terminals – whether shorted or open. It reflects the output data echo of the module.

Specifications:

• Manufacturer Rockwell Automation
• Brand Allen-Bradley
• Part Number/Catalog No. 1769-OB8
• Product Line CompactLogix
• Module Type DC Output Module
• Input Type Digital Output
• Communication Cable 8 Point
• Shipping Weight 2 lbs.
• Shipping Dimensions 8X8X5 in.
• Series A and B
• Wire Size (Stranded) 22-16 AWG
• Replacement Terminal Block 1769-RTBN18
• Replacement Door 1769-RD
• Mounting Panel Mount or DIN Rail
