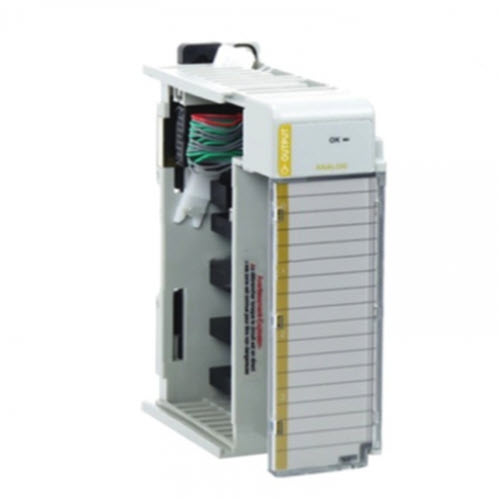

1769-OF4CI Allen Bradley Analog Output Module

1769-OF4CI Allen Bradley Analog Output Module

Is analog output module with embedded Four (4) differential, individually isolated channels. This module has an output current signal of 0-20mA and 4-20 mA with full analog current range of 0-21 mA and 3.2-21 mA respectively. This module belongs to the 1769 Compact I/O system and designed in compatibility with MicroLogix 1500 and CompactLogix controller.

Features:

• This module may also be installed in a remote I/O chassis using DeviceNet communication adapter with part number 1769-ADN or Ethernet Communication adapter with part number 1769-AENTR.
• Used to drive Final Control Elements (FCE) or actuators to implement multiple control points.
• Available data formats are Raw / Proportional data, Engineering unit, Scaled for PID and Percent full range.
• Configurable channels parameters include output range selection, module inhibition, module description and slot assignment.
• The module generates a unique data table for each instance of installation where the channel addresses, module mode bits, module state and other runtime parameters.

Specifications:

• Manufacturer Rockwell Automation / Allen-Bradley
• Brand Allen-Bradley
• Part Number/Catalog No. 1769-OF4CI
• Product Family: Compact I/O
• Module Type Analog Output Module
• No. of outputs: Four (4) Differential; Individually isolated
• Power Supply Distance Rating 8
• Communication Cable 4 Point
• Shipping Weight 2 pounds
• Shipping Dimensions 8 x 8 x 5 inches
• Compatible controllers: MicroLogix 1500; CompactLogix controllers
• Series A and B
• Analog Ranges: Current: 0 to 20 mA, 4 to 20 mA
• Series A and B
• Full scale analog ranges: Current: 0 – 21 mA, 3.2 – 21 mA
• Field Calibration None Required
• Analog data format: Raw / Proportional data, Engineering unit, Scaled for PID and Percent full range.
• Replacement Door Part Number 1769-RD
• Conversion rate: 110 ms
• Wire Type Copper-90 AWG
  Digital resolution: 16 bits (unipolar) +4 to +20 mA: 15.59 bits, 0.323 µA/bit 0 to +20 mA: 15.91 bits, 0.323 µA/bit
• Calibration: None required (guaranteed by hardware design)
• Solid Wire Size 22 to 14 AWG
• Stranded Wire Size 22 to 16 AWG
• Non-linearity (in percent full scale): ±0.05%
• UPC 10781180908658
• UNSPSC 32151705
• Slot width: 1
• Power Supply: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
• Recommended cable: Belden 8761 (shielded)
• Module location: DIN rail or panel mount
