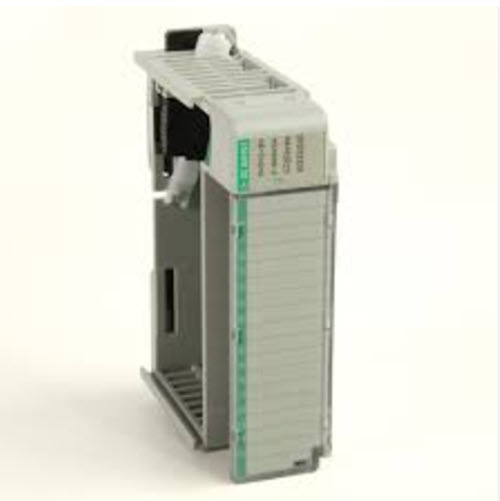

1769-OG16 Allen Bradley TTL Output Module

1769-OG16 Allen Bradley TTL Output Module

Is an Allen-Bradley compact TTL output module. It has 16 outputs and the module’s on and off-state output depends on the voltage it is running at. At 0-0.4 volts DC, the on-state output is guaranteed, and at 4.5-5.5 volts DC, the off-state output is guaranteed. Neither output state is guaranteed when the 1769-OG16 is operating between 0.4-4.5 volts DC.

Features:

• The module’s minimum load current is 0.15 milliamps
• Maximum current per point is 24 milliamps.
• This small output module (it measures 4.7 x 1.4 x 3.4 in.) mounts onto DIN rails, panel mounts, and other 1769 modules.
• Because it has no enclosure, it is more susceptible to debris, static, and UV from sunlight and other sources than enclosed modules.
• Keep the 1769-OG16 away from these harmful substances, and for further safety measures do not connect more than 2 wires to any terminal or use a DC or I/O cable that is more than 30 feet long.

Specifications:

• Manufacturer Rockwell Automation
• Brand Allen-Bradley
• Part Number/Catalog No. 1769-OG16
• Product Line CompactLogix
• Module Type TTL Output Module
• Input Type TTL Output
• Communication Cable 16 Point
• Shipping Weight 2 lbs.
• Shipping Dimensions 8X8X5 in.
• Series A and B
• Enclosure Open
• Wire Type Copper-90?
• Solid Wire Size 22?14 AWG
• Stranded Wire Size 22?16 AWG
