1SVR427035R0000 CP-E 24-10.0 ABB Power supply In 115-230VAC Out 24VDC-10A

General InformationExtended Product Type:
CP-E 24/10.0
Product ID:
1SVR427035R0000
EAN:
4016779669696
Catalog Description:

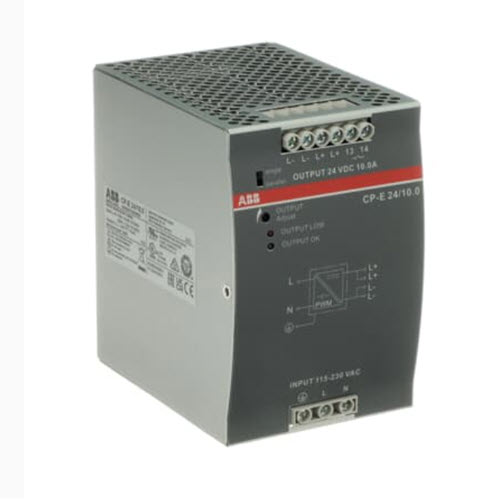

CP-E 24/10.0 Power supply In:115/230VAC Out: 24VDC/10A
Long Description:
The CP-E 24/10.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-132 V AC, 180-264 V AC and 210-375 V DC, rated input voltage is 115 or 230 V AC (auto select). The rated output power is 240 W, rated output current is 10 A at an output volt
age of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel. A redundancy unit is available as accessory
