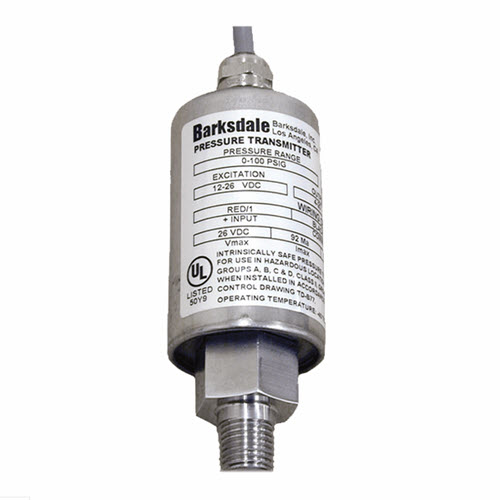

445H3-13-E INTRINSICALLY SAFE PRESSURE TRANSDUCER

445H3-13-E INTRINSICALLY SAFE PRESSURE TRANSDUCER

Description:

Provide high accuracy pressure measurement when operating in Class I, Division I environments. Intrinsically safe transducers prevent personal injury and machinery damage by preventing the explosion in the first place. The External zener barriers are required in order to meet UL requirements for an intrinsically safe installation.

The higher cost of having to install a zener barrier is offset with the comfort of knowing that an explosion will not occur within normal operating conditions. Three models are available: Series 443 (0-5V), Series 445 (4-20mA) and Series 446 (0-10V).

Features:

• High accuracy
• Protection in hazardous environments, Class I, Div 1
• Rugged all-welded stainless steel construction
• Superior EMI, ESD and RFI protection
• NEMA 4
• Built-in high pressure snubber (2000 PSI and above)
• cULus, CE approved
• ATEX / IECEx certified

Applications:

• Oil & gas pipelines
• Oil patch
• Petrochemical plants
• Refineries
• Pulp and paper mills
• Coal and oil fired power plants
• Cement plants
• Gas transfers for fuel systems
• Gas panels
• Gas mixing systems

Product Specifications:

General Specifications

• Accuracy: ±0.25% FSO at 75°F typical; ±0.5% for vacuum only
• Electrical Connection: Shielded & jacketed #22 AWB cable (1 meter)
• Pressure Connection: 1/4-18 NPT male
• Input: 12 to 28 VDC
• Output: 4 – 20 mA analog output

Switch

• Pressure Range: 0 – 3,000 PSI (0 – 207 bar)
• Wetted Parts: 17-4 PH (fitting) & 300 stainless steel (sensor)
• Enclosure: NEMA 4, 300 series stainless steel
