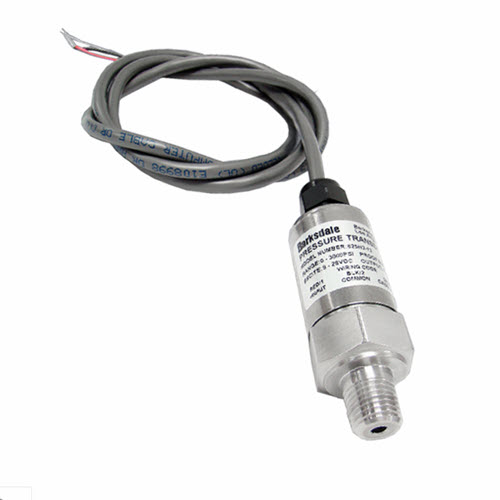

625H3-16 BARKSDALE SERIES 600 OEM PRESSURE TRANSDUCER

Barksdale’s Series 600 is the ideal solution for applications that require a low cost, accurate, reliable transducer in a small package. Where long term stability is a requirement, the Series 600 transducer delivers. With a robust ceramic sensor that excels in rugged environments, the Series 600 offers high accuracy at 0.5% FSO and thermal stability within .06% over the entire operating range of -40 to 185° F. Wetted materials of 316 stainless steel, ceramic and Viton® make it ideal for use with aggressive media. The Series 600 family is rated NEMA 4X, UL approved and is available in pressure ranges from 0-30 to 0-8700 PSIG and a variety of standard outputs: 4-20 mA, 0.5-5.5 VDC, 0.5-4.5 VDC ratiometric, 1-11 VDC and 0-10 VDC.



Features:

• UL and cUL approved
• Compact size
• Stainless steel construction
• Ceramic sensor technology
• Current and voltage outputs
• 0.5% accuracy

Applications:

• Water irrigation systems
• Medical gas systems
• HVAC systems
• Pumps and compressors
• Machine tools
• Hydraulic and pneumatic applications
• Mobile hydraulics
• General industrial applications

General Specifications

Accuracy:	±0.5% FSO at 75°F (24°C) typical
Electrical Connection:	PVC Shielded & jacketed #22 AWG cable (1 meter)
Pressure Connection:	1/4″ NPT male
Input:	9 to 28 VDC (2-wire)
Output:	4-20 mA analog output

Switch

Pressure Range:	0-6000 PSI (0-413.7 BAR)
Wetted Parts:	17-4 PH (fitting) & 300 stainless steel (sensor)
Enclosure:	NEMA 4, 300 series stainless steel
