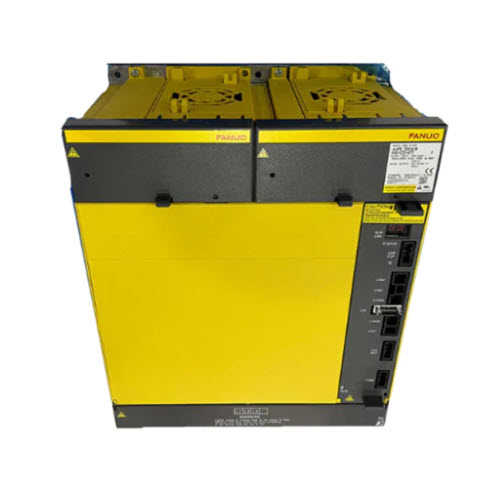

A06B-6252-H100 Fanuc Power Supply Module

The A06B-6252-H100 is a Fanuc Power Supply Module (specifically the (alpha )iPS 100HV-B model) from the (alpha )i-B series. It is a high-voltage servo power converter designed for industrial CNC applications, often paired with FS 3xi-B series controllers

Technical SpecificationsModel Name: (alpha )iPS 100HV-B
Power Output: 100 kW
Input Voltage: 400V series (Typically 380V to 480V AC, three-phase)
Output Voltage: High-voltage DC bus for servo and spindle amplifiers
Physical Dimensions:

Width: 300 mm (11.8 in)
Height: 380 mm (14.9 in)
Depth: 272 mm (10.7 in)

Weight: Approximately 18 kg (39.6 lbs) (Shipping weight may reach up to 50 lbs)
