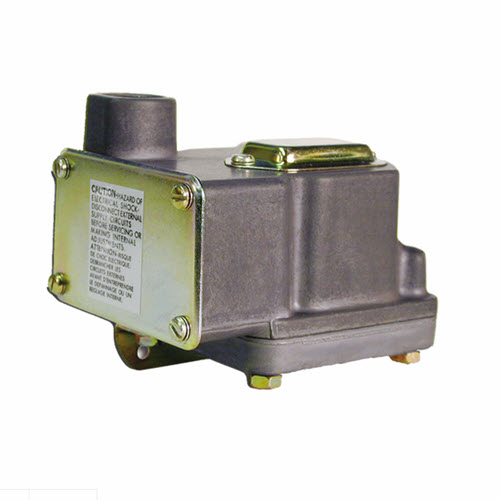

B2T-H32SS BARKSDALE SERIES B2T BOURDON TUBE PRESSURE SWITCH

Barksdale’s Bourdon Tube Pressure Switches offer instrument class accuracy, making them an ideal solution to your pressure control needs when accuracy is critical. Built-in over-travel stops allow for higher proof pressures than most other pressure switch technologies. Setpoints are easily adjusted via an internal adjustment screw. Available in single and dual configurations, Bourdon Tube Pressure Switches are adaptable for use in a wide range of industrial applications. A variety of limit switches is available to allow for a multitude of electrical switching conditions. For applications requiring a highly accurate switch in a highly durable package, Bourdon Tube Pressure Switches are the ideal solution.



Features:

• Diaphragm Seal Option Available
• High Accuracy
• High pressure up to 18,000 psi
• Tamper-proof external adjustment
• Single and dual switching capability
• Water tight housing versions available (NEMA 4)

General Specifications

Accuracy:	± 1% of the adjustable range
Electrical Connection:	Stripped Model: 21″ Free Leads Housed Model: Internal terminal strip via conduit connection

Adjustable Range

Decreasing – psi (bar)		Increasing – psi (bar)
min	max	min	max
160 (11)	3161 (211)	199 (13.5)	3200 (213)

Switch

Type:	Single pole double throw (SPDT) or double make double break (DMDB) snap action; single or dual circuit
Rating:	10 amp @ 125/250 VAC 3 amp @ 480 VAC 0.5 amp @ 24 VDC

Wetted Parts

Process Fitting & Bourdon Tube:	316 stainless steel
Enclosure:	Anodized aluminum
