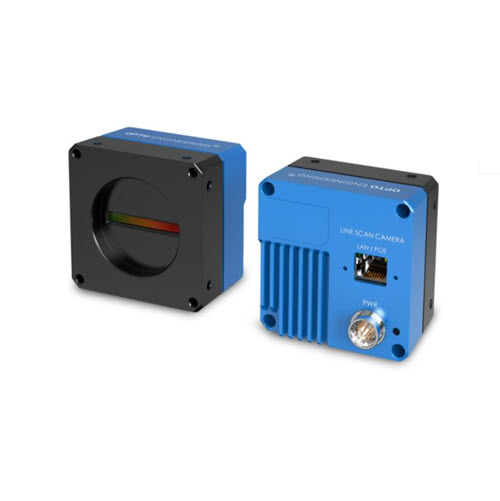

COE-4K-C-POE-010-J OPTO 4K Line Scan Camera, 4096 x 2, 7 μm, CMOS, GigE, Color, M42x1 FD 12 mount
$0.00
| Sensor specifications | ||
| Resolution | 4096 x 2 | |
| Sensor format | 4K | |
| Pixel size | (μm) | 7 |
| Line length | (mm) | 28.7 |
| Sensor model | GL0402 | |
| Image mode | – | |
| Sensor type | CMOS | |
| Shutter | Global | |
| Chroma | Color | |
| Camera specifications | ||
| Filter | AR | |
| Line rate | (kHz) | 19 |
| Max line rate (1) | (kHz) | 80 |
| Exposure time | 5 μs – 10 ms | |
| ADC resolution | (bit) | – |
| Dynamic range | (dB) | 65.6 |
| Gain range | (dB) | 0-10 |
| SNR | (dB) | 40.0 |
| Image buffer | (MB) | 1024 |
| Pixel formats | Mono 8/10/12, RGB8, BGR8, Bayer RG 8/10/10Packed/12/12Packed, YUV 422Packed, YUV422_YUYVPacked | |
| Chunk data | yes | |
| User sets | 3.0 | |
| Timers/Counters | 0/1 | |
| Synchronization | Free run, software trigger, hardware trigger | |
| Connectivity and electrical specifications | ||
| Data connector | RJ45 | |
| Data interface | 1 GigE | |
| I/O connector | 12-pin Hirose | |
| I/O interface | 4x configurable input and output, supports single-end/differential | |
| Serial interface | RS-422, RS-644, TTL&LVTTL | |
| Encoder interface | yes | |
| Power supply | (V) | 12-24, PoE |
| Max power consumption (2) | (W) | 6.6 |
| Compliance and reliability | ||
| Standards | GigE Vision, GenICam | |
| Client software | OECS or other GigEVision software | |
| Operating systems | 32/64-bit Windows XP/7/10 | |
| Warranty | (years) | 1 |
| Mechanical specifications | ||
| Mount | M42x1 FD 12 | |
| Dimensions | (mm) | 62 x 62 x 41 |
| Clamping system | 12x M4 threaded holes (on all sides) | |
| Mass | (g) | 280 |
| Environmental specifications | ||
| Operating temperature | (°C ) | -20-+50 |
| Storage temperature | (°C ) | -30-+80 |
| Operating relative humidity | (%) | 20-80, non condensing |
| IP rating | IP30 | |
