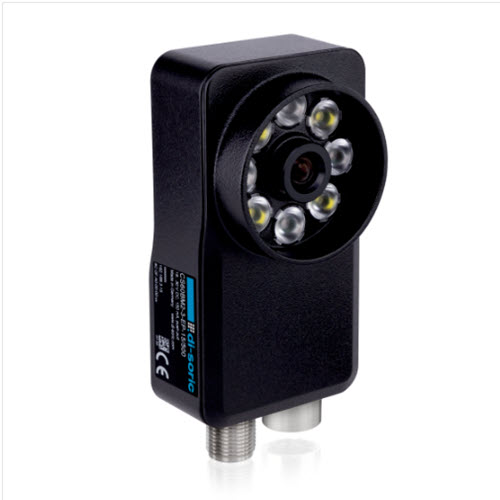

CS60-BM38-EP15/400ID Di-Soric Vision Sensor CS-60 213363

$0.00

Our CS-60 Vision Sensor offers outstanding flexibility for the highest degree of productivity.

Due to easy lens changing and integrated high-performance illumination, the CS-60 creates excellent images with respect to distance, field of vision and resolution. The extensive tools can be easily expanded through software upgrades and may be individually customized as needed. Comfortable, logical linking of tools and the versatile Profinet connection to the existing PLS component complete its flexibility.



  • Inspection tasks: Localization, Parts recognition, Counting, Measure, ID code localization and recognition (read code)
  • The specialist, compact and high-performance
  • High power LED illumination in red and white
  • Flexible and productive Software nVision-i
  • Parameter changes via linked Profinet inputs during execution
  • Simple & intuitive parameterization
  • Flexible working distances of 50 – 2,000 mm by changing lenses
  • Customization option

carousel image

Electrical features
Service voltage
18 … 30 V DC
No-load current (max.)
1000 mA (24 V DC)
Insulation voltage endurance
500 V
Mechanical features
Housing material
Die-cast zinc (Black, powder-coated)
Material
PMMA (Window / optics)
Lens connection
S-mount
Weight
265 g
Certifications, approvals
Protection class
III, operation on protective low voltage
Risk group (DIN EN 62471)
Risk group 1
General features
Model
CS 60
Design
Cuboid design
Type
IMX273
Functional scope
Inspection tasks
Localization, Parts recognition, Counting, Measurement, Read code
Shutter
global
Scope of delivery
CS60-BM38-EP15/400ID, O-S1-S-080-40, CS60-WINDOW
Internal lights
High power lighting white and red can be switched via software
Output, input, interface
Switching output
Push-pull, 100 mA
Switching output number
4 (programmable, 1 (Ready))
Voltage drop (max.)
2 V
Interface
  • Ethernet
  • Digital Input/Output
Protocols
TCP/IP, FTP/SFTP, Profinet
Optical data
Color
Red / white switchable (internal)
Focal length
8 mm (exchangeable S-mount lens)
Optical format
1/2.9″
Detection range, measuring range, tolerance limits
Resolution
1456 x 1088 Pixel
Working distance
50,0 … 2000 mm
Display, operation
Display
LED Green – Operation, yellow – DATA-Link yellow – Trigger
Time behavior
FPS – Frames Per Second (max.)
30 images/second
Flash length
< 2 ms
Ambient conditions
Ambient temperature during operation
0 … +50 °C
Vibration/shock resistance
10 to 55 Hz / 1.0 mm / 30 g / 11 ms
Protection type
IP 67
Electrical connection
Connection
Connector, M12, 12-pin (A-coded)
Connection 2
Socket, M12, 8-pin (X-coded)
Cable
Connection cables max. 25 m



Detalles

SKU CS60-BM38-EP15/400ID Category
