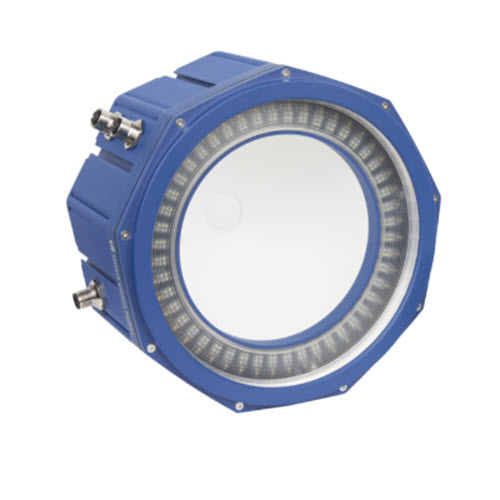

DoAll all-in-one light kit
The patented DoAll is an all-in-one solution unprecedented in its flexibility for machine vision lighting applications and automatic inspection. The DoAll combines 6 machine vision lights into one easy-to- use multifunctional product; with each DoAll you get a dome light, a low angle dark field ring light, a mid angle dark field ring light, an RGBW ring light, a four quadrant ring light, and a NIR ring light.
Ideal for automated inspections
From large scale automotive assembly to smaller electronic assembly and everything in between, the DoAll excels at performing multiple inspections where the ideal lighting varies by each inspection type. With its small footprint and integrated camera mount, the DoAll is the perfect fit for the compact spaces of robotic workcells.
One light to do it all
Manage multiple inspections with one light. The DoAll combines 6 machine vision lights into one easy-to-use multifunctional product. For any surface, with any finish, at any angle, the DoAll provides the right light for your automated inspection.
- Mode:Multi-Drive™
- Wavelength:WHI – White, 470 – Blue, 560 – Green, 625 – Red, 850 – IR
- Illumination Type:Bright Field, Dark Field, Direct Lighting, Dome “Light Tent”
SPECIFICATIONS
DLM Specifications
Electrical Input 24VDC +/-5%
Electrical Input Connector 2 position screw terminal block – 14AWG max wire size
Operating Current (No Load) 315 mA
Number of Input Channels 8 (including 1 input channel with interrupt capability) – All inputs are configurable for PNP or NPN operation
Input Connector 8 position screw terminal block – 14AWG max wire size
Max Input Channel Voltage Not to exceed electrical input voltage
Trigger Input PNP > +3.3 VDC (24 VDC max.) to activate or NPN >GND (<1.4 VDC) to activate (not both)
Input Channel Current PNP Mode: 4mA@ 4VDC I 10mA@ 12VDC |20mA@ 24VDC NPN Mode: 15mA@ Ground (OVDC)
Output Channels 4 Dedicated Outputs (DO1-D04), 4 User Programmable Outputs (DO5-DO8), 1 Non-programmable Output Used to Communicate DLM Status (DO9)
Output Channel Current Outputs 1 -4: 20mA @ 24VDC, Outputs 5-8: 2A @ 24VDC, Output 9: 50mA @ 24VDC
Output Connectors 10 position screw terminal block – 14AWG max wire size
Indicator Lights Power indicator will turn green when turned on.
Status indicator will turn blue when the controller is booted Status indicator will flash blue when theres a light connection error
Protection Circuitry Polyfuse protection
Programming Connector Ethernet port
Mounting DIN rail
Operating Temperature -28° to 40° C (0° to 104° F) | RH max 95% non-condensing humidity
Warning The user must ensure that the potential difference between any combination of applied signals does not exceed the supply voltage. The DoAll Light Manager (DLM) must not be used in an application where its failure could cause a danger to personal health or damage to other equipment.
Terminal Blocks (Included with DLM) 2 position terminal block plug 8 position terminal block plug 10 position terminal block plug
Weight 0.7 Ibs 1 0.31 kg
Warranty* 3 Years
DoAll Specifications
Auxiliary Output Channels 2 5-Pin M12 Connectors
Auxiliary Output Channel Max Current 15 A for both outputs combined
Auxiliary Output Channel Pinout Standard Smart Vision Lights pinout.
These auxiliary outputs are designed for use only with Smart Vision Lights products.
Weight 3.5 Ibs 1 1.58 kg
Warranty* 5 Years
