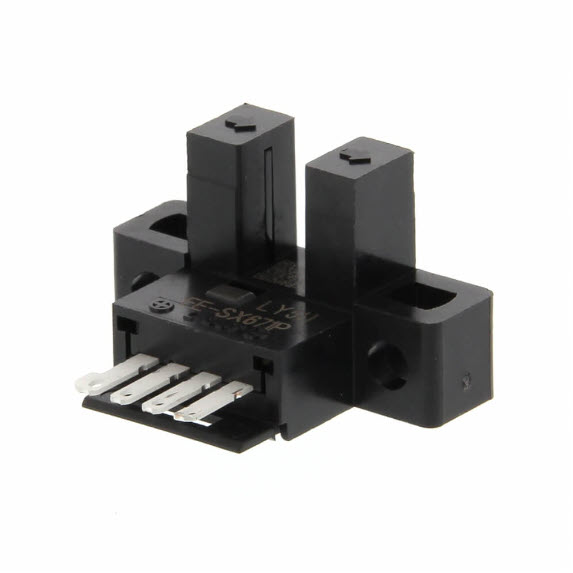

EE-SX671P-WR 1M Omron Photomicrosensor, Slot type Through-beam L-shaped

Type Grooved Type (L-shaped)
Luminous method Non-modulated
Sensing method Through-beam type
Sensing distance Slot width: 5 mm
Operation mode Dark-ON/Light-ON (selectable)
Standard sensing object Opaque, 2 x 0.8 mm min.
Differential distance elements 0.025 mm max.
Light source （Peak wavelength） Infrared LED (940 nm)
Indicator Light indicator (red)
Power supply voltage 5 to 24 VDC ±10%
ripple (p-p) 10 % max.
Current consumption 30 mA
Control output Output type PNP open collector output
Load power supply voltage 5 to 24 VDC
Load curren 50 mA max.
Residual voltage at 50 mA load current: 1.3 V max.
Response frequency elements 1 kHz min.
Average value: 3 kHz
Illumination on the surface receiver Fluorescent light: 1000 lx max.
Ambient temperature Operating: -25 to 55 ℃ (with no freezing or condensation)
Storage: -30 to 80 ℃ (with no freezing or condensation)
Ambient humidity Operating: 5 to 85 % (with no condensation)
Storage: 5 to 95 % (with no condensation)
Vibration resistance Destruction: 20 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods)
Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection IP50
Connection method Pre-wired models
Cable length 1 m
Weight Package: Approx. 17.3 g
Material Case: Polybutylene terephthalate (PBT)
Emitter/Receiver Cover: Polycarbonate (PC)
