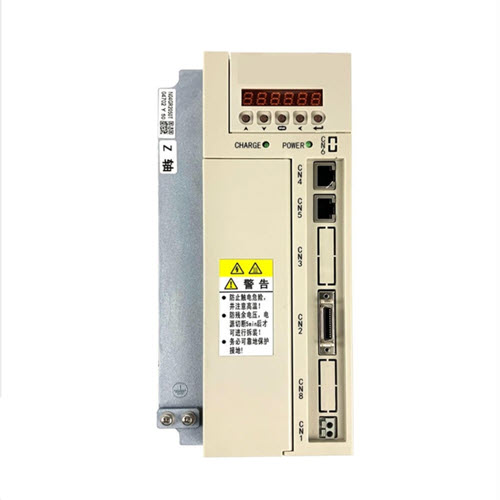

GR2045-LA1 GSK AC Servo Drive

GSK GR2045-LA1 AC Servo Drive

Brand
GSK CNC Equipment Co., Ltd.

Model / Part Number
GR2045-LA1

Product Type
AC Servo Drive (Servo Amplifier)

Short Description
High-performance AC servo drive for CNC machine tools, designed to control feed servo motors, torque motors, linear motors, and high-speed spindle applications within the GSK GR2000 Series.

Specifications

Model: GR2045-LA1
Series: GR2000
Product Type: AC Servo Drive
Input Voltage: 220 VAC
Power Range (Series): 200 W to 45 kW
Control Modes:

Position
Speed
Torque
Position/Speed
Position/Torque
Speed/Torque

Maximum Motor Speed:

35,000 rpm (Synchronous Servo)
60,000 rpm (Asynchronous Servo)

Feedback Interfaces:

25-bit Absolute Encoder
Heidenhain EnDat 2.2
BiSS-C
Tamagawa SMART
Incremental Encoder (A/B/Z)

Communication Bus: GSK-Link
Second Feedback: Supported
Protection Rating: IP54
Cooling: Forced Air
Mounting: Panel Mount
Application: CNC Feed Axis / Servo Motor Control / Spindle Control
