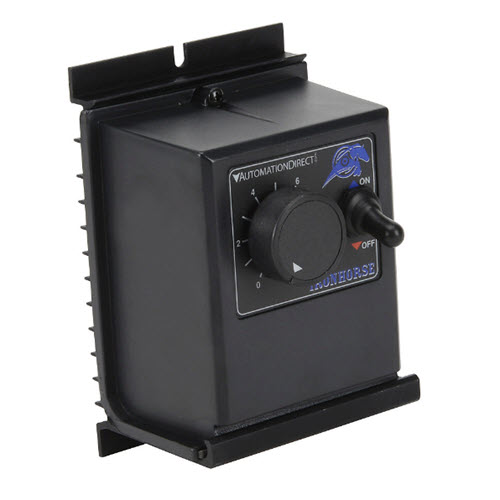

GSD3-240-3N4 Automation Direct IronHorse GSD3 series DC general purpose drive, 120/240 VAC

GSD3-240-3N4 Automation Direct

IronHorse GSD3 series DC general purpose drive, 120/240 VAC, 1-phase, 1/50 to 1/3hp at 90 VDC and 1/25 to 2/3hp at 180 VDC, 3A, NEMA 4, panel mount, field-install reverse, potentiometer input, SCR output.

Brand IronHorse
Item Drive
Controller Type General purpose
Series GSD3
Voltage Type DC
Number of Input Phases 1
Nominal Drive Input Voltage 120/240 VAC
Nominal Drive Output Voltage Output up to 90/180 VDC
Horsepower by Voltage 1/50 to 1/3hp at 90 VDC and 1/25 to 2/3hp at 180 VDC
Amperage Rating 3A
Variable Torque Amperage Rating 0.15 – 3A
Control Mode DC
Safe Torque Off (STO) No
Temperature Rating -10 to 40 deg C
Enclosure Type NEMA 4
IP Rating IP65
