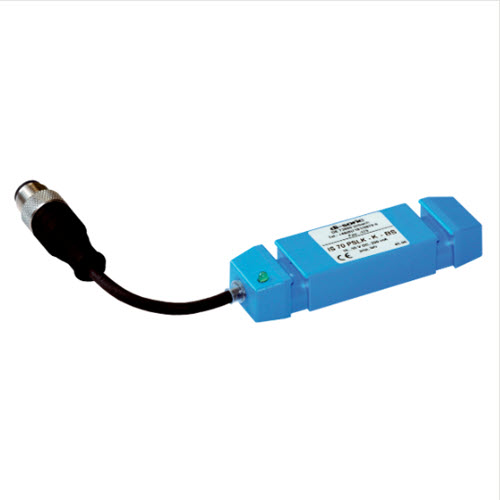

IS 70 NSLK-K-BS Di-Soric Inductive Tube Sensor IS 204303

$0.00
Our inductive tube sensors in static design can detect the smallest metallic parts are reliably. They are very well suited for quickly supplied parts and for the detection of material accumulation. They are available in the size 70 x 20 x 12 mm.
  • Compact design
  • High resolution
  • Low weight
  • Cable with plug connector M12
  • Slot for quick mounting
  • Cable tie contained in scope of delivery
  • Static operating principle

carousel image

Electrical features
Service voltage
10 … 35 V DC (Supply Class 2)
No-load current (max.)
15 mA
Insulation voltage endurance
500 V
Mechanical features
Housing length
70 mm
Housing height
12 mm
Housing width
20 mm
Housing material
Plastic (PC)
Material of cable
Polyurethane
Certifications, approvals
Protection class
III, operation on protective low voltage
General features
Operating principle
inductive
Evaluation
Static
Design
Cuboid design
Output, input, interface
Switching output
npn, 200 mA, NO
Voltage drop (max.)
2 V
Pulse stretching
100 ms
Detection range, measuring range, tolerance limits
Switching distance
14 mm
Display, operation
Display
LED Green – Operation, yellow – Switching output
Time behavior
Speed of parts (max.)
35 m/s
Response time
0,50 ms
Release time
100 ms
Ambient conditions
Shock/vibration load
30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation
-25 … +70 °C
Protection type
IP 67
Electrical connection
Connection
Pigtail, 0,04 m, M12, 3-pin
Accessories
Connection cable
VK …
