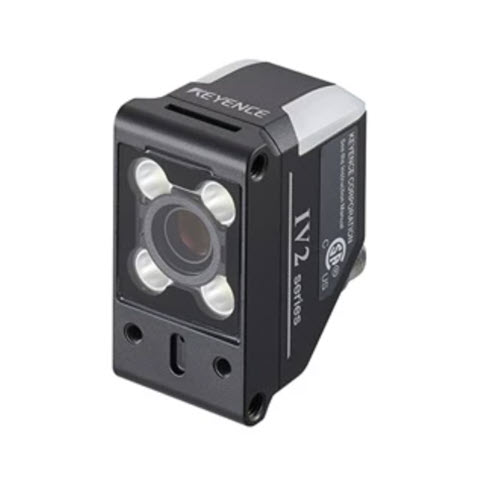

IV2-G500MA Keyence Sensor head Standard model Monochrome AF type

Model

IV2-G500MA

Type

Standard model

Reference distance

20 to 500 mm 0.79″ to 19.69″

Field of view

Installation distance of 20 mm 0.79″:
10 (H) × 7.5 (V) mm 0.39″ (H) × 0.30″ (V) to
Installation distance of 500 mm 19.69″:
200 (H) × 150 (V) mm 7.87″ (H) × 5.91″ (V)

Indicators

2 (the same display details for both indicators)

Image receiving element

Type

1/3 inch monochrome CMOS

Number of pixels

752 (H) × 480 (V)

Focus adjustment

Automatic*1

Exposure time

1/10 to 1/50000

Lights

Illumination

White LED

Lighting method

Switchable between pulse lighting and DC lighting

Environmental resistance

Enclosure rating

IP67*2

Ambient temperature

0 to +50°C 32 to 122°F (No freezing)

Relative humidity

35 to 85% RH (No condensation)

Vibration resistance

10 to 55 Hz; double amplitude 1.5 mm 0.06″; 2 hours in each of the X, Y, and Z directions*3

Shock resistance

500 m/s2 1640.4’/s2, 6 times in each of the 3 directions*3

Material

Main unit case: Zinc die-casting, Front cover: Acrylic (hard coat), Operation indicator cover: TPU

Weight

Approx. 75 g
