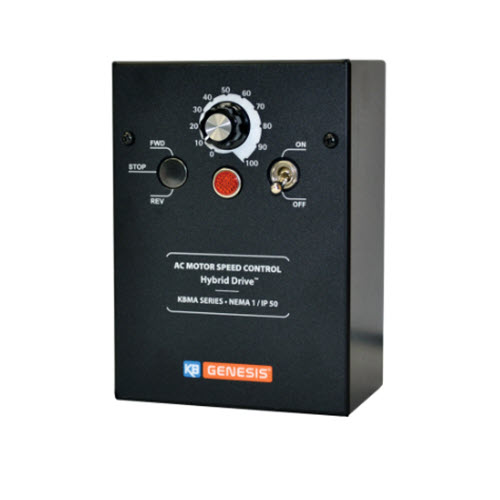

KBMA-24D KB Electronics Nidec Black (9533) AC Drives

Manufacturer Part Number: 9533
Item Number: KBMA-24D Black
Manufacturer: KB Electronics
Product Series: KBMA
Family Series: KB Electronics Drives, KBMA Series
Input Phase: 1
HP (Constant Torque Rating): 1 hp
Amps (Constant Torque Rating): 3.6 A
Braking Type: None
Closed Loop: No
AC Line Regenerative: No
Operator Controls: Built In
IP Rating: IP50
Motor Control-Max Level: V/Hz (Scalar)
Mounting: Panel
Input Range Voltage (AC): 98-132 VAC, 177-264 VAC
Package: KBMAIP50
Dynamic Braking Trans: Not Available
Comments: This drive features an analog control panel.
Net Weight: 3.00 lbs
Gross Weight: 3.00 lbs

KBMA-24D Hybrid AC Drive, A Digital Drive with Analog Interface Rugged Aluminum NEMA-1 / IP-50 Enclosure Primary Features: Horsepower (Kw) 1/8 (.09) to 1.0 (.75), Jumper Selectable 1Ø Input 115/230 VAC, 50/60 Hz 3Ø Output 230 VAC On/Off AC Line Switch, 200% Starting Torque Diagnostic LED Status Indicators Class “A” (CE) RFI Filter* Additional Features: Flux Vector Compensation with Static Auto-Tune provides excellent speed regulation with high torque loads throughout the entire speed range. Auto energy saving at light loads. Smooth motor torque. Electronic Inrush Current Limit (EICLTM) Protection Run/Fault Relay Output Contacts Holding Torque at Zero Speed in “Stop” mode Undervoltage and Overvoltage Protection Short Circuit Protection, phase to phase Ride-Through momentary power loss Regeneration Protection eliminates tripping Basic Programmable Trimpot Adjustments

*Model KBMA-24DF Drive Options: Forward-Stop-Reverse Switch Signal Isolator, Auto/Manual Switch

Dimensions approx. in (cm). 7.00″ (17.8) x 4.95″ (12.7) x 4.15″ (10.7).

Agency approvals: UL, CE, CSA, C-Tick.
