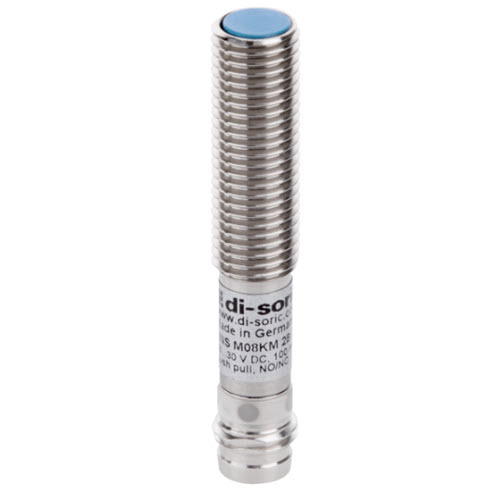

KNS M08KM 2B G3-T3 Di-Soric Capacitive proximity sensor KNS 212675

$0.00
Our capacitive proximity sensors detect liquid, powdery and solid materials precisely and reliably. They are equally suitable for the detection of metallic and non-metallic parts. Parts can also be detected through container walls or packaging. The sensitivity and NO/NC switching is adjusted by way of multiturn potentiometers. The sensors are available in the smallest sizes Ø 6.5mm, M8 and M12.
  • Large operating distance
  • Detection of liquids, powdery and solid materials
  • Detecting metal and non-metal parts
  • Detection possible even through containers and packaging
  • NO/NC, switchable via IO-Link
  • Push-pull output pnp + npn
  • Robust nickel-plated brass housing
  • Short design

carousel image

Electrical features
Service voltage
18 … 30 V DC
No-load current (max.)
15 mA
Insulation voltage endurance
500 V
Mechanical features
Installation type
Flush
Thread
M8 x 1
Housing length
44,8 mm
Housing material
Brass (nickel-plated)
Weight
6 g
Certifications, approvals
Protection class
III, operation on protective low voltage
General features
Operating principle
Capacitive
Design
Thread
Functional scope
Operation modes
STANDARD, HIGH RESOLUTION, SPEED
Scope of delivery
2 x M8 nuts
Output, input, interface
Switching output
Push-pull, 100 mA, NO/NC, switchable via IO-Link
Voltage drop (max.)
2 V
Interface
IO-Link
Detection range, measuring range, tolerance limits
Switching distance (SN)
2 mm (0.2 to 3 mm adjustable via IO-Link)
Standardized measuring plate
8 x 8 mm
Switching hysteresis (max.)
< 15 %
Display, operation
Sensitivity adjustment
IO-Link
Display
LED yellow – Output signal
Time behavior
Switching frequency (factory setting)
100 Hz (STANDARD)
Switching frequency (STANDARD)
100 Hz
Switching frequency (HIGH RESOLUTION)
10 Hz
Switching frequency (SPEED)
200 Hz
Readiness delay (max.)
300 ms
Ambient conditions
Shock/vibration load
30 g, 10 … 55 Hz / 0.5 mm
Ambient temperature during operation
-25 … +70 °C
Protection type
IP 65 / IP 67
Electrical connection
Connection
Connector, M8, 3-pin



Detalles

SKU KNS M08KM 2B G3-T3 Category
