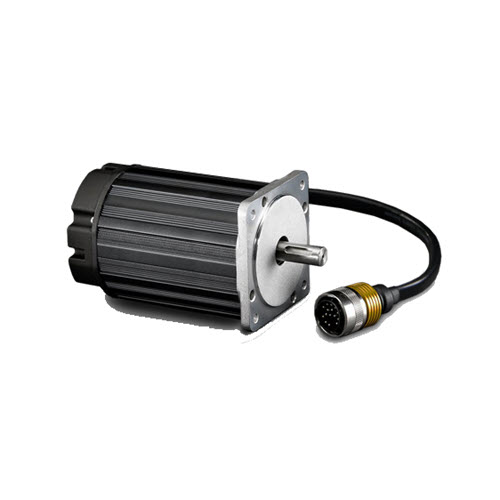

M-3441C-LS-16D Teknik NEMA 34 Hudso Servo Motor

Specifications at 300 VDC

Peak Torque
1,743 oz-in (12.3 N-m)

Cont. (RMS) Torque
436 oz-in (3.1 N-m)

Max Speed
5000 RPM

Peak Power
6,447 W (8.64 hp)

Cont. (RMS) Power
524 W (0.70 hp)

Motor Frame Size NEMA 34 – 3.42 in (86.87 mm) sq.
Length 5.06 in (128.52 mm)
Insulation Rating Class H, 180° C
# Motor Poles 8
Motor Pigtail Length 16 in ± 1 in (406.4 mm ± 25.4 mm)
Shaft Diameter 0.5 in (12.70 mm)
Weight 7.9 lb (3.6 kg)
Rotor Inertia 15.5 oz-in² (2.8 kg-cm²)
Max Case Temperature 85° C
Max Winding Temperature 155° C
Ambient Temperature2 -40 to +70° C
Operating Conditions No direct fluid wash-down or submerged use
Encoder Type Differential signals; incremental
Commutation (Hall) Outputs 120° spaced, optical commutation sensors
Maximum Radial Load 50.0 lbf (222.411 N)
Maximum Thrust Load 10.0 lbf (44.5 N)
