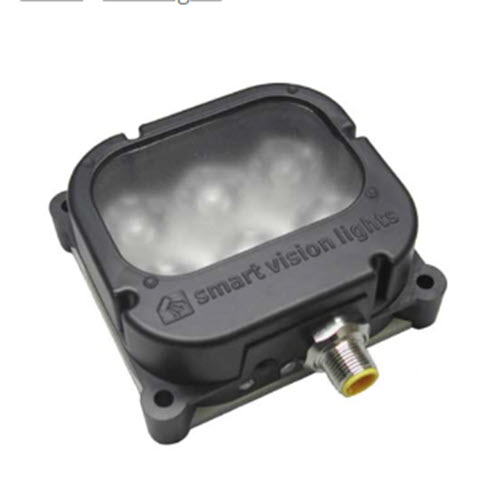

ODS75-470-W Smart Vision Lights OverDrive Brick Light Blue Wide

Product Details

• Illumination Type:Bright Field, Dark Field, Direct Lighting
• IP Rating:IP50
• Min Working Distance:300 mm
• Max Working Distance:4000 mm
• Mode:OverDrive™

The ODS75 Brick Light Series features a smart driver with OverDrive^™ strobe mode. The high-intensity LEDs provide an intense but diffused light pattern at a working distance of up to 4000 mm. This series of lights offers a manual potentiometer intensity control allowing the intensity to be adjusted from 10%-100%. A user can also adjust the intensity using the 1-10VDC analog signal line. Heat is dissipated through the aluminum back plate, which allows the ODS75 Series to be run at a higher current and hence greater intensity.

Electrical Input 24VDC +/-5%
Input Current Peak 3 A draw during strobe
Input Power Peak 72 W during strobe
PNP Trigger 2.8 mA @ 4VDC 1 8.8 mA @ 12VDC 117.6 mA @ 24VDC
NPN Trigger 14.4 mA @ Common (OVDC)
Trigger Input PNP > +4 VDC (24 VDC max.) to activate or NPN 2 GND < 1VDC to activate (not both)
Strobe Duration Min. 1 us I Max. 50 ms
Strobe Frequency Max 4 kHz or 1 / Duty Cycle as calculated, whichever is less*
Duty Cycle Max 10%*
Red Indicator LED ON = Light Rest (LED inactive) I OFF = LED/Light Ready
Green Indicator LED ON = Power
Intensity Limit 270° turn pot — intensity control of 10%-100%. Turn clockwise to increases intensity.
Analog Intensity The output is adjustable from 10%-100% of brightness by a 1 -10 V DC signal.
Connection 5-pin M12 connector
Operating Temperature -10° to 40° C (14° to 104° F) I RH max 80% non-condensing humidity
Storage Temperature -20° to 70° C (-4° to 158° F) I RH max 80% non-condensing humidity
IP Rating IP50
Weight ~155g
Compliances CE, RoHSJEC 62471
Warranty UV LEDs have a 2 year warranty, all other LEDs have a 10 year warranty.
For complete warranty information, visit smartvisionlights.com/warranty.
