SW75-470-L Smart Vision Lights Brick Light Washdown Blue Line
$0.00
Product Details
- Illumination Type:Bright Field, Dark Field, Direct Lighting
- IP Rating:IP68
- Min Working Distance:300 mm
- Max Working Distance:4000 mm
- Mode:OverDrive

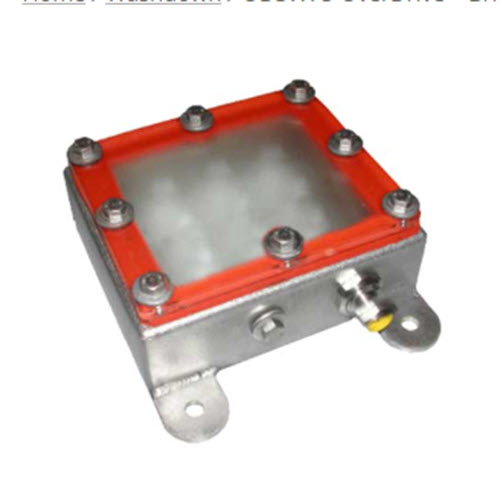

The SW75 Brick Light is a spot light that features a stainless-steel IP68-rated enclosure specially designed for the food industry and washdown environments. NPN or PNP trigger signal inputs can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or by adjusting the built-in manual potentiometer.
“ PRODUCT SPECIFICATIONS
Electrical Input 24VDC +/-5%
Input Current Max. 400 mA
Input Power Max. 9.6 W
PNP Trigger 2.8 mA @ 4VDC | 8.8 mA @ 12VDC 117.6 mA @ 24VDC
NPN Trigger 14.4 mA @ Ground (0 VDC)
Trigger Input PNP > +4 VDC (24 VDC max.) to activate or NPN 2 GND <1VDC to activate (not both)
Intensity Limit 270° turn pot — intensity control of 10%-1 00%. Turn clockwise to increases intensity.
Analog Intensity The output is adjustable from 10%-1 00% of intensity limit by a 1-1 OVDC signal. (Jumpering pin 5 to pin 1 will provide maximum intensity.)
Connection 5-pin M1 2 connector
Operating Temperature -10° to 40°C(14°to 104° F) RH max 80% non-condensing humidity
Storage Temperature -10° to 40° C (14° to 104° F) RH max 80% non-condensing humidity
IP Rating IP68
Weight -760 g
Compliances CE, RoHSJEC 62471
ACCESSORIES
Power Cables
5 m 5PM12-5
10 m 5PM12-10
15 m 5PM12-15
Power Cables (Washdown)
15 m W5PM12-15
Washdown cable has a 316 Stainless-steel connector.
