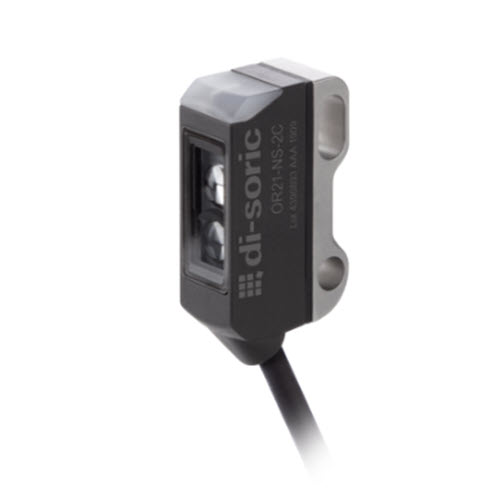

OR21-NS-2C Di-soric Retroreflective sensor O-21 212986

$0.00
The transmitter and receiver are in one housing. The emitted light is reflected back by a reflector and evaluated in the retroreflective sensor. Polarization filters also allow the detection of reflecting objects. Retroreflective sensors make long ranges possible, with simple assembly and a high degree of system availability.
  • Miniature design
  • Mounting element made of metal
  • High switching frequency
  • Long range

carousel image

Electrical features
Service voltage
10 … 30 V DC
No-load current (max.)
20 mA
Inverse polarity protection
Yes
Mechanical features
Housing dimensions
28.1 x 8.1 x 14.4 mm
Housing length
8,1 mm
Housing height
28,1 mm
Housing width
14,4 mm
Housing material
Stainless steel / Plastic
Material of cable
PVC
Material
Plastic (Window / optics)
Weight
37 g
Certifications, approvals
Protection class
III, operation on protective low voltage
General features
Operating principle
Retroreflective sensor
Evaluation
digital
Design
Cuboid design
Output, input, interface
Switching output
npn, 100 mA, NO
Voltage drop (max.)
2,5 V
Optical data
Light source
LED
Color
red
Wavelength
633 nm
Modulation
Clocked
Light spot size
Ø 120 mm (at distance of 1800 mm)
Detection range, measuring range, tolerance limits
Range
20 … 1800 mm
Standardized measuring plate
200 x 200 mm (white)
Referring reflector
R 19 x 54 mm
Display, operation
Sensitivity adjustment
no setting elements
Display
LED Green – Operation, yellow – Switching output
Time behavior
Switching frequency
1000 Hz
Ambient conditions
Ambient temperature during operation
-25 … +60 °C
Protection type
IP 65 / IP 67
Electrical connection
Connection
Cable, 2,0 m, 3-pin



Detalles

SKU OR21-NS-2C Category
