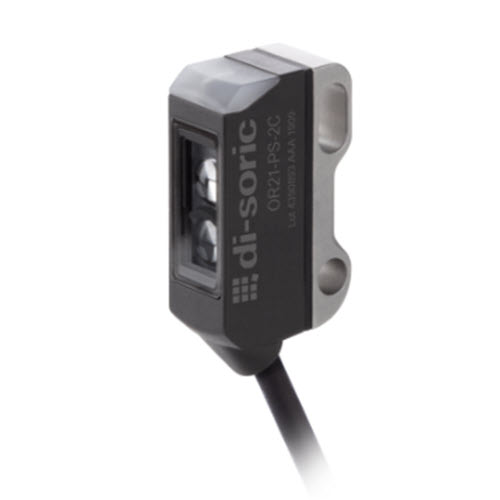

The transmitter and receiver are in one housing. The emitted light is reflected back by a reflector and evaluated in the retroreflective sensor. Polarization filters also allow the detection of reflecting objects. Retroreflective sensors make long ranges possible, with simple assembly and a high degree of system availability.
- Miniature design
- Mounting element made of metal
- High switching frequency
- Long range
- IO-Link
- Diagnostic function reserve
Electrical features
Service voltage
10 … 30 V DC
No-load current (max.)
20 mA
Inverse polarity protection
Yes
Mechanical features
Housing dimensions
28.1 x 8.1 x 14.4 mm
Housing material
Stainless steel / Plastic
Material
Plastic (Window / optics)
Certifications, approvals
Protection class
III, operation on protective low voltage
General features
Operating principle
Retroreflective sensor
Output, input, interface
Switching output
pnp, 100 mA, NO/NC, configurable
Voltage drop (max.)
2,5 V
Interface
IO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Optical data
Light spot size
Ø 120 mm (at distance of 1800 mm)
Detection range, measuring range, tolerance limits
Range
20 … 1800 mm (configurable)
Standardized measuring plate
200 x 200 mm (white)
Referring reflector
R 19 x 54 mm
Display, operation
Sensitivity adjustment
IO-Link
Display
LED Green – Operation, yellow – Switching output
Time behavior
Switching frequency
1000 Hz
Ambient conditions
Ambient temperature during operation
-25 … +60 °C
Protection type
IP 65 / IP 67
Electrical connection
Connection
Cable, 2,0 m, 3-pin
