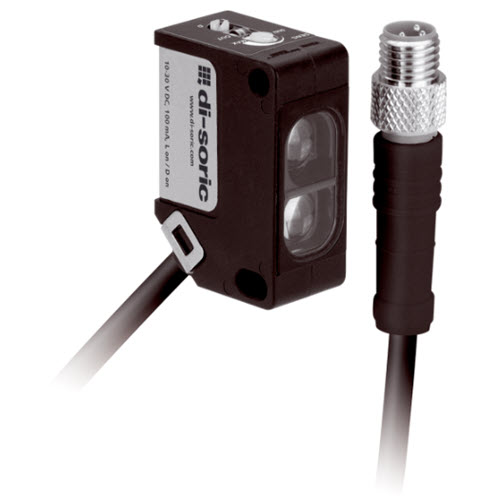

OT 31 K 100 N3-K-T3 Di-Soric Diffuse reflective sensor O-30 209237

$0.00
Energetic diffuse reflective sensors are economical sensors for detecting objects in which transmitters and receivers are located in one housing. They evaluate the energy of the reflected sensor light from objects. The working distance and the brightness of object and background influence object detection. Bright objects against a dark background can be detected well with energetic diffuse reflective sensors.
  • Compact design
  • Red light
  • Sensitivity is adjustable
  • Switch for light/dark switching
  • Fully molded electronic circuitry, vibration-resistant
  • Standardized hole spacing 25.4 mm

carousel image

Electrical features
Service voltage
10 … 30 V DC
No-load current (max.)
30 mA
Insulation voltage endurance
1000 V
Mechanical features
Housing dimensions
31.2 x 21 x 12.8 mm
Housing length
21 mm
Housing height
31,2 mm
Housing width
12,8 mm
Housing material
Plastic (PA, 6.6)
Material
PMMA (Window)
Certifications, approvals
Protection class
III, operation on protective low voltage
General features
Operating principle
Diffuse sensor
Evaluation
digital
Design
Cuboid design
Output, input, interface
Switching output
npn, 100 mA, NO/NC, switchable
Voltage drop (max.)
2 V
Optical data
Light source
LED
Color
red
Wavelength
630 nm
Modulation
Clocked
Ambient light immunity
3 kLx Halogen light, 10 kLx Sunlight
Detection range, measuring range, tolerance limits
Scanning range
100 mm
Standardized measuring plate
200 x 200 mm (white)
Switching hysteresis (max.)
10 %
Display, operation
Sensitivity adjustment
Potentiometer
Time behavior
Switching frequency
1000 Hz
Response time
0,50 ms
Release time
0,50 ms
Ambient conditions
Ambient temperature during operation
-25 … +70 °C
Temperature drift
0,1 mm/K
Protection type
IP 67
Electrical connection
Connection
Pigtail, 0,2 m, M8, 3-pin
Accessories
Connection cable
TK …
