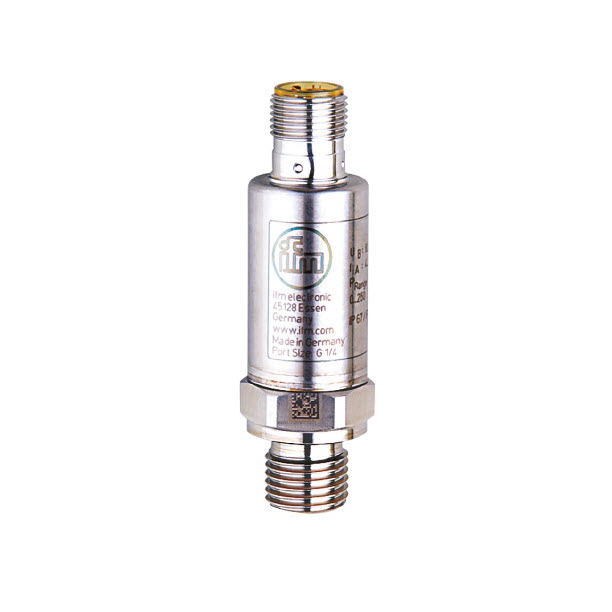

PT5401 IFM Pressure transmitter 0…250 bar 4…20mA PT-250-SEG14-A-ZVG/US/ /W

Product characteristicsNumber of inputs and outputs Number of analogue outputs: 1
Measuring range

0…250 bar 0…3625 psi 0…25 MPa

Process connection threaded connection G 1/4 external thread (DIN EN ISO 1179-2)ApplicationApplication for industrial applications
Media liquids and gases
Medium temperature [°C] -40…90
Min. bursting pressure

1200 bar 17400 psi 120 MPa

Pressure rating

625 bar 9060 psi 62.5 MPa

Note on pressure rating

static

Vacuum resistance [mbar] -1000
Type of pressure relative pressureElectrical dataOperating voltage [V] 8.5…36 DC
Min. insulation resistance [MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Power-on delay time [s] < 0.1Inputs / outputsNumber of inputs and outputs Number of analogue outputs: 1OutputsTotal number of outputs 1
Output signal analogue signal
Number of analogue outputs 1
Analogue current output [mA] 4…20
Max. load [Ω] (Ub – 8,5 V) / 21,5 mA; @8,5V= 0 Ω; @12V max. 160 Ω; @24V max. 720 Ω
Short-circuit proof yes
Overload protection yesMeasuring/setting rangeMeasuring range

0…250 bar 0…3625 psi 0…25 MPaAccuracy / deviationsRepeatability [% of the span] < ± 0,05; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the span] < ± 0,5; (incl. drift when overtightened, zero point and span error, non-linearity, hysteresis)
Linearity deviation [% of the span] < ± 0,1 (BFSL) / < ± 0,2 (LS)
Hysteresis deviation [% of the span] < ± 0,2
Long-term stability [% of the span] < ± 0,1; (per 6 months)
Temperature coefficient zero point and span [% of the span / 10 K] < 0,1 (-25…90 °C) / < 0,2 (-40…-25 °C)Response timesStep response time analogue output [ms] 1Operating conditionsAmbient temperature [°C] -40…90
Storage temperature [°C] -40…100
Protection IP 67; IP 69KTests / approvalsEMC

DIN EN 61000-6-2
DIN EN 61000-6-3

Shock resistance

DIN EN 60068-2-27 50 g (11 ms)

Vibration resistance

DIN EN 60068-2-6 20 g (10…2000 Hz)

MTTF [years] 686
Pressure Equipment Directive Sound engineering practice; can be used for group 2 fluids; group 1 fluids on requestMechanical dataWeight [g] 60
Housing cylindrical
Dimensions [mm] Ø 19 / L = 66
Materials stainless steel (630/1.4542/17-4 PH); stainless steel (316L/1.4404); PEI
Materials (wetted parts) stainless steel (630/1.4542/17-4 PH)
Min. pressure cycles 60 million; (at 1.2 times nominal pressure)
Tightening torque [Nm] 25…35; (recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection threaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Process connection sealing FKM (DIN EN ISO 1179-2)
Restrictor element integrated no (can be retrofitted)RemarksRemarks

BFSL = Best Fit Straight Line
LS = limit value setting

Pack quantity 1 pcs.Electrical connectionConnection Connector: 1 x M12; coding: A
