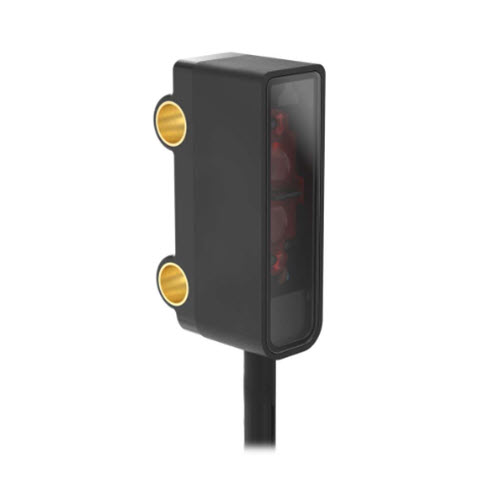

Q2XABR-Q5 BAnner Q2X Series: Receiver
$0.00
- IP Rating
- IP67
- Power
- DC
- Sensing Beam
- Visible Red LED
- Cable Length (m)
- 0.15
- Sensing Mode (General)
- Opposed
- Sensing Mode (Detailed)
- Receiver
- Housing Style
- Rectangular
- Primary Housing Material
- ABS/Polycarbonate
- Small Visible Spot
- LED
- Input Output
- Discrete
- Max Sensing Distance (mm)
- 3000
- Outputs
- Bipolar (NPN & PNP)
- Power Supply/Supply Voltage
- 10-30 V dc
- Connection
- Pigtail QD
- Quick Disconnect Type
- M12
- Operation
- Light Operate
- Min Op. Temp. (°C)
- -25
- Max Op. Temp. (°C)
- 50
- Output response time (ms)
- 1 ON/0.6 OFF
- Special Feature: Intrinsically Safe
- No
- Special Feature: Remote Teach
- No
- Special Feature: Water Detection
- No
- Sensing Beam Wavelength
- 645
- Delay at Power-up (ms)
- 120
- Repeatability (µs)
- 133
- Number of Pins
- 4
- NEMA Rating
- NEMA 6
- Max Op. Relative Humidity [%]
- 95% @ 50°C
- Lens Material
- Acrylic
- Adjustments
- N/A
- Indicator
- LEDs
- Opposed Mode Emitter/Receiver
- Receiver
- Feature: Quick Disconnect
- Yes
