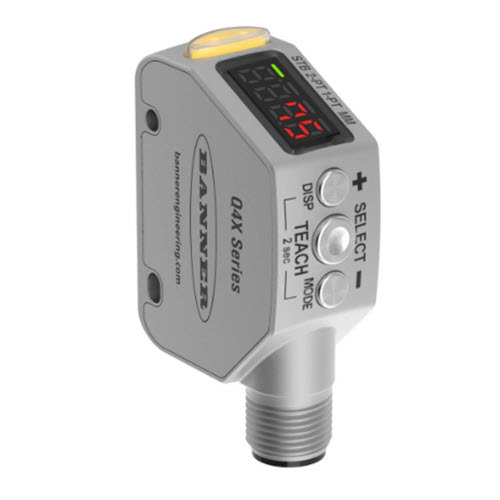

Q4XFPLAF110-Q8 Banner Laser Adjustable Field Flush Mount Housing
$0.00
- Sensing Beam
- Visible Red Laser
- Power
- DC
- IP Rating
- IP67, IP68, IP69K
- Sensing Mode (General)
- Proximity
- Sensing Mode (Detailed)
- Background/Foreground Suppression
- Housing Style
- Rectangular
- Device Type
- Sensor
- Primary Housing Material
- Stainless Steel
- Laser Classification
- Class 1
- Input Output
- Discrete
- Connection
- Integral QD
- Quick Disconnect Type
- M12
- Max Sensing Distance (mm)
- 110
- Minimum Sensing Distance (mm)
- 35
- Power Supply
- 10-30 V dc
- Adjustments
- Push Button; Remote Teach
- Number of Pins
- 4
- Discrete (Switched) Outputs
- 1 PNP
- Max Operating Temperature (°C)
- 50
- Min Operating Temperature (°C)
- -10
- Minimum Response Time (ms)
- 1.5
- Laser Control
- Yes
- Max Ambient Light (Lux)
- 5000
- Feature: Remote Teach
- Yes
- Feature: Washdown Rated
- Yes
- Feature: Clear Object Detection
- Yes
- Feature: Timing (Hold/Delay)
- Yes
- Feature: Ecolab Certified
- Yes
- Feature: Chemical Resistant
- Yes
- Feature: Quick Disconnect
- Yes
