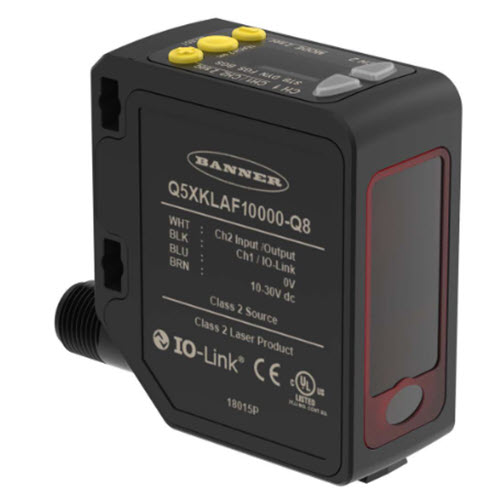

Q5XKLAF10000-Q8 Banner Q5X Series: Laser Adjustable Field
$0.00
- Power
- DC
- Sensing Beam
- Visible Red Laser
- PFM Output
- Yes
- IP Rating
- IP67
- Sensing Mode (General)
- Proximity
- Sensing Mode (Detailed)
- Background/Foreground Suppression
- Housing Style
- Rectangular
- Device Type
- Sensor
- Primary Housing Material
- ABS
- Laser Classification
- Class 2
- Input Output
- Discrete
- Connection
- Integral QD
- Quick Disconnect Type
- M12
- Max Sensing Distance (mm)
- 10000
- Minimum Sensing Distance (mm)
- 50
- Power Supply
- 10-30 V dc
- Adjustments
- Push Button; Remote Teach
- Number of Pins
- 4
- Discrete (Switched) Outputs
- 2 NPN/PNP Configurable
- Max Operating Temperature (°C)
- 50
- Min Operating Temperature (°C)
- -10
- Minimum Response Time (ms)
- 2
- Laser Control
- Yes
- Max Ambient Light (Lux)
- up to 5000 lux at 1000 mm and up to 2000 lux at 2000 mm
- Feature: Remote Teach
- Yes
- Feature: Clear Object Detection
- Yes
- Feature: Timing (Hold/Delay)
- Yes
- Feature: Pump-in/ Pump-out
- Yes
- Feature: Quick Disconnect
- Yes
- IO Link
- Yes
