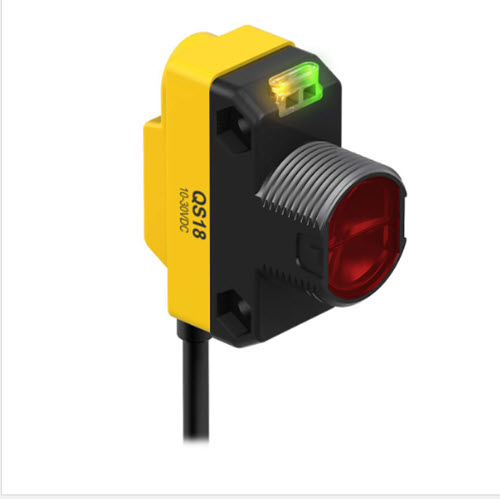

QS18VN6FF50 Banner WORLD-BEAM Q18 Series: Fixed-Field 71637
$0.00
- IP Rating
- IP67
- Sensing Beam
- Visible Red LED
- Cable Length (m)
- 2
- Power
- DC
- Sensing Mode (General)
- Proximity
- Sensing Mode (Detailed)
- Background Suppression (Fixed)
- Housing Style
- Rectangular w/M18 Mount
- Primary Housing Material
- ABS
- Small Visible Spot
- LED
- Input Output
- Discrete
- Max Sensing Distance (mm)
- 50
- Outputs
- NPN
- Power Supply/Supply Voltage
- 10-30 V dc
- Connection
- Cable
- Min Op. Temp. (°C)
- -20
- Operation
- Light/Dark Operate
- Max Op. Temp. (°C)
- 70
- Output response time (ms)
- 0.85
- Sensing Beam Wavelength
- 630
- Delay at Power-up (ms)
- 100
- Repeatability (µs)
- 160
- Number of Pins
- 4
- NEMA Rating
- NEMA 6
- Max Op. Relative Humidity [%]
- 95% @ 50°C
- Lens Material
- Acrylic
- Adjustments
- N/A
- Barrel Diameter (mm)
- 18
- Indicator
- LEDs
- Feature: Audible
- No
