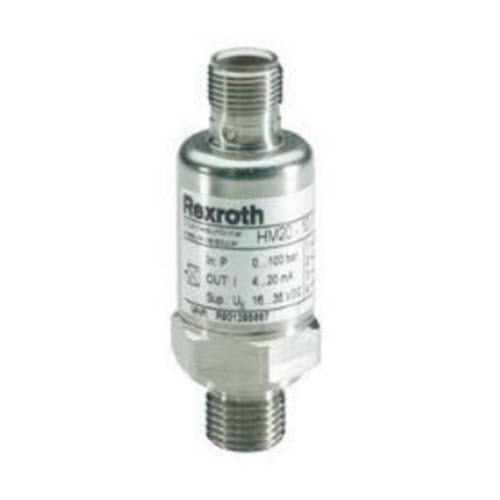

R901342027 Bosch Rexroth Hydraulics R901342027, HM 20-2X/250-H-K35
$0.00
Features
- Marine approval DNV-GL for all variants with current output
- Wide operating temperature range -40 to 185°F (–40 to 85 °C)
- Excellent non-repeatability < 0.05 %
- Accuracy class 0.5
- Operational safety due to high bursting pressure, reversed polarity, overvoltage and short-circuit protection
- Components that are in contact with the media are made of stainless steel
- Sensor with thin film measuring cell
- 8 measurement ranges up to 9137 psi (630 bar)
- Measuring pressures in hydraulic systems
-
Applications
For Closed Loop (Feedback) and Most Industrial Applications
Tech Specifications
| Series: | HM 20 |
| Fluid Type: | HL, HLP, HFC |
| Accuracy: | < 0.5% |
| Process Connection: | G1/4A Male Thread |
| Electrical Connection: | 4 Pin M12 Connector at Housing |
| Voltage Output: | 0.1 – 10V |
| Voltage Rating: | 16 – 36VDC |
| Material: | CrNi Steel 1.4404 Housing, CrNi Steel 1.4305 Throttle and NBR Seal |
| Polarity: | Reverse |
| Life Cycle: | 40000 hr |
| Pressure Rating: | 250 bar |
| Temperature Rating: | -20 to 80 deg C |
| Dimensions: | 22 mm Width x 65 mm Height |
| Weight: | 0.07kg |
| Pressure Range | 3626 psi (250 bar) |
| Voltage Output | 0.1 to 10 V |
| Pressure Media | HL, HLP, HFC, Nitrogen (maximum of 300 bar is admissible) |
| Pressure Connection | G1/4 |
| Connector | 4-pole, M12x1 |
| Throttle Element | Without |
| Operating Voltage | 18-36 VDC |
| Protection Class | IP65/IP67 with mating connector correctly mounted and locked |
| Weight | 50 grams |
