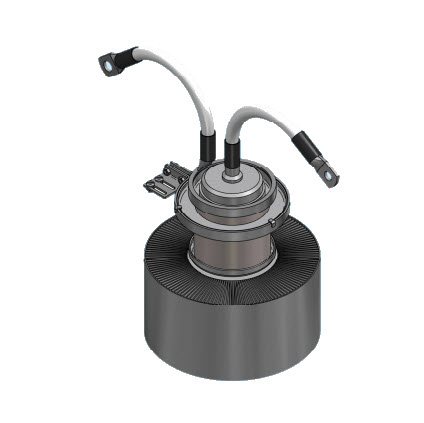

RD 17 XMF Tesla Electron Tube Triodo ITL15-2
$0.00
This electron tube is intended for industrial generators up to 120 MHz. Application – RF heating, welding or gluing.
Maximum plate dissipation can be 17 kW. Output power is 45 kW in CW mode.
RD17XMF is air-cooled triode, made by metal-ceramic technology. This electron tube is intended for industrial generators up to 120 MHz. Application – RF heating, welding or gluing. Maximum plate dissipation can be 17 kW. Output power is 45 kW in CW mode. For operation in pulse mode, the parameters depends on equipment characteristics. Contact us for specific information.
Technical specifications
Cathode WTh
Filament voltage 7.2 V
Filament current 180 A
Amplification factor 25
Transconductance 60 mA/V
Capacitance
• grid-anode 25 PF
• grid-cathode 60 PF
• cathode-anode 1.4 PF
Frequency 120 MHz
Anode voltage
• <30 MHz 13 kV
• 2 30 MHz 9-7 kV
Grid voltage -1500 V
Grid current 1.6 A
Grid dissipation 600 w
Anode dissipation 17 kW
Peak cathode current 40 A
Additional accessories*
Mechanical characteristics and cooling
Anode cooling air
Air inlet temperature 45 oC
Temperature (any point of envelope) 220 °C
Air outlet temperature 75 °C
Air flow 9 m3/min
Mounting position vertical
Weight 9 kg
• Grid contact ring
*for detailed information please contact our sales department
