THALES Tube Triodo RS3026CL
$0.00

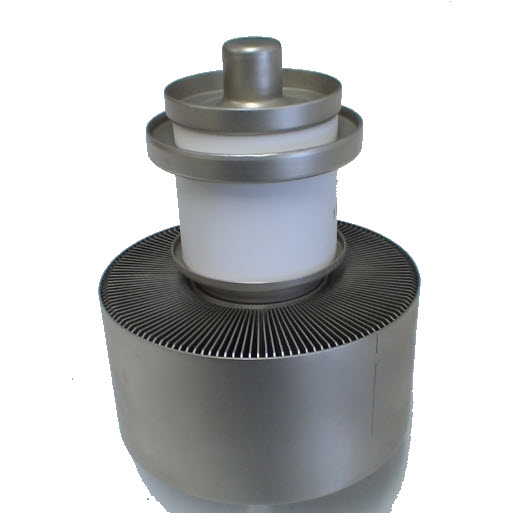

The RD 24 XM is a forced air cooled power triode with external anode, designed in ceramic – metal technology for frequences up to 120 MHz.
The maximum plate dissipation rating is 15 kW.
RD 24 XM is primarily intended for use in industrial generators.
RD24XM is air-cooled triode, made by metal-ceramic technology. This electron tube is intended for industrial generators up to 120 MHz. Application – RF heating, welding or hardening. Maximum plate dissipation can be 15 kW. Output power is 32 kW in CW mode. For operation in pulse mode, the parameters depends on equipment characteristics. Contact us for specific information.
Technical specifications
Cathode WTh
Filament voltage 7 V
Filament current 115 A
Amplification factor 20
T ransconductance 30 mA/V
Capacitance
• grid-anode 26 PF
• grid-cathode 59 PF
• cathode-anode 1.5 PF
Maximum ratings
Frequency 120 MHz
Anode voltage
• <40 MHz 12 kV
• 2 30 MHz 11-9 kV
Grid voltage -1500 V
Grid current 1.4 A
Grid dissipation 550-350 w
Anode dissipation 15 kW
Peak cathode current 30 A
Mechanical characteristics and cooling
Anode cooling air
Air inlet temperature 25 oC
Temperature (any point of envelope) 220 °C
Air outlet temperature 80 °C
Air flow 15 m3/min
Mounting position vertical
Weight 11 kg
Additional accessories*
• Grid contact ring
• Filament contact rings
• Fuse
*for detailed information please contact our sales department
